Next-generation chip cooling is moving from external cold plates toward microchannel and in-chip microfluidic architectures.
From conventional cold plates to in-chip microfluidic cooling
Traditional liquid cooling often works like an external thermal sink. Heat leaves the chip, passes through multiple interfaces, and is finally transferred into a metal cooling plate. Each layer adds thermal resistance. As heat flux continues to rise, this architecture becomes increasingly difficult to scale.

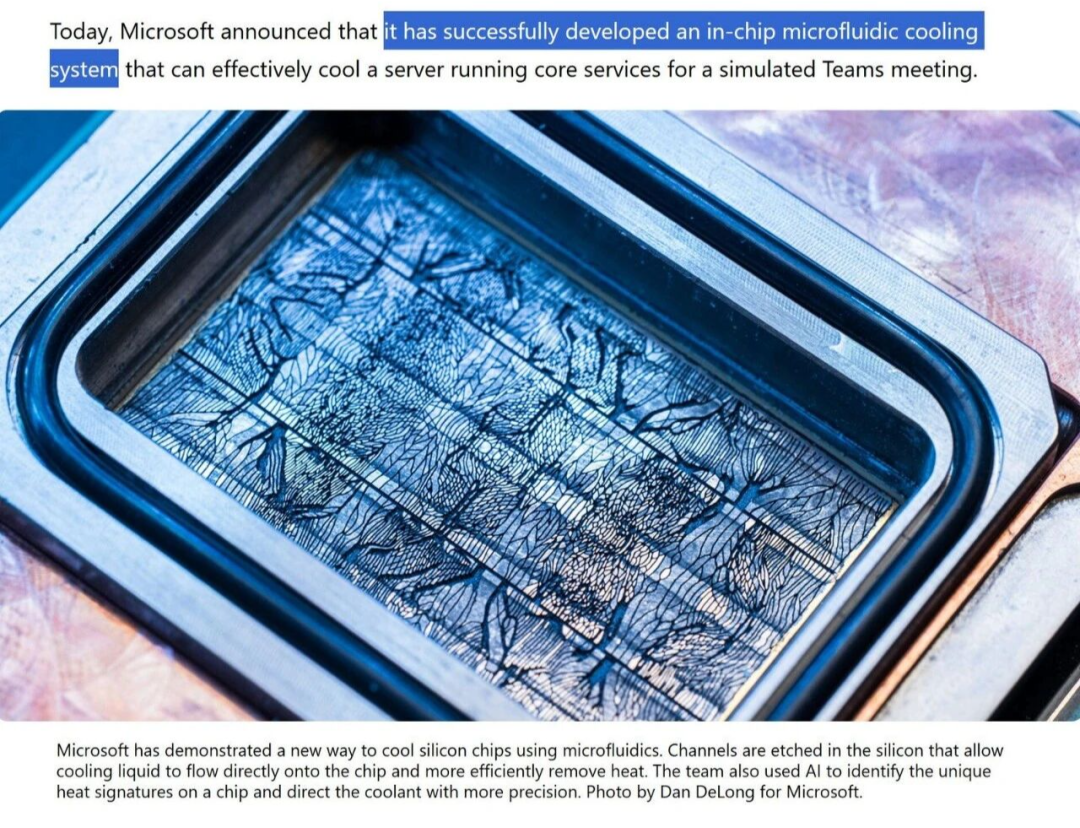

Next-generation liquid cooling takes a more direct route. Instead of relying only on a cold plate attached to the package, engineers are developing microchannel and micro pin-fin structures much closer to the heat-generating region of the chip. In in-chip or chip-backside microfluidic cooling, coolant flows through micro-scale channels or pin-fin arrays fabricated directly into the silicon substrate or related structures, dramatically shortening the thermal path.

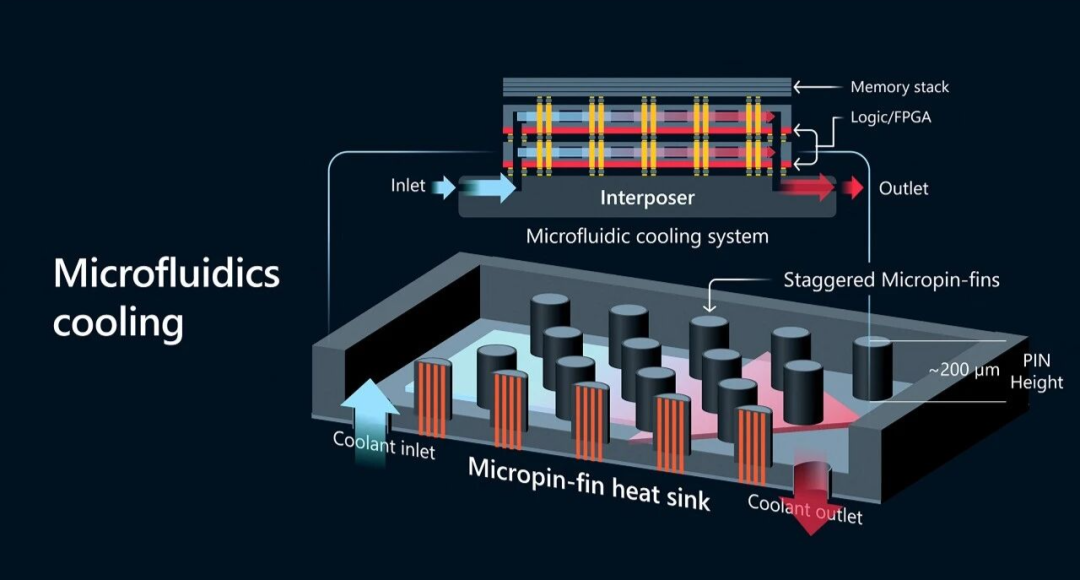

Comparison between conventional cold-plate liquid cooling and microfluidic cooling. In the microfluidic approach, coolant flows much closer to the heat source, reducing thermal resistance.
These structures are extremely small. Representative geometries can involve features around 100 μm in width or diameter and more than 200 μm in depth. Micro pin-fin arrays increase surface area significantly, which can improve heat transfer far beyond what conventional package-level cooling can achieve.

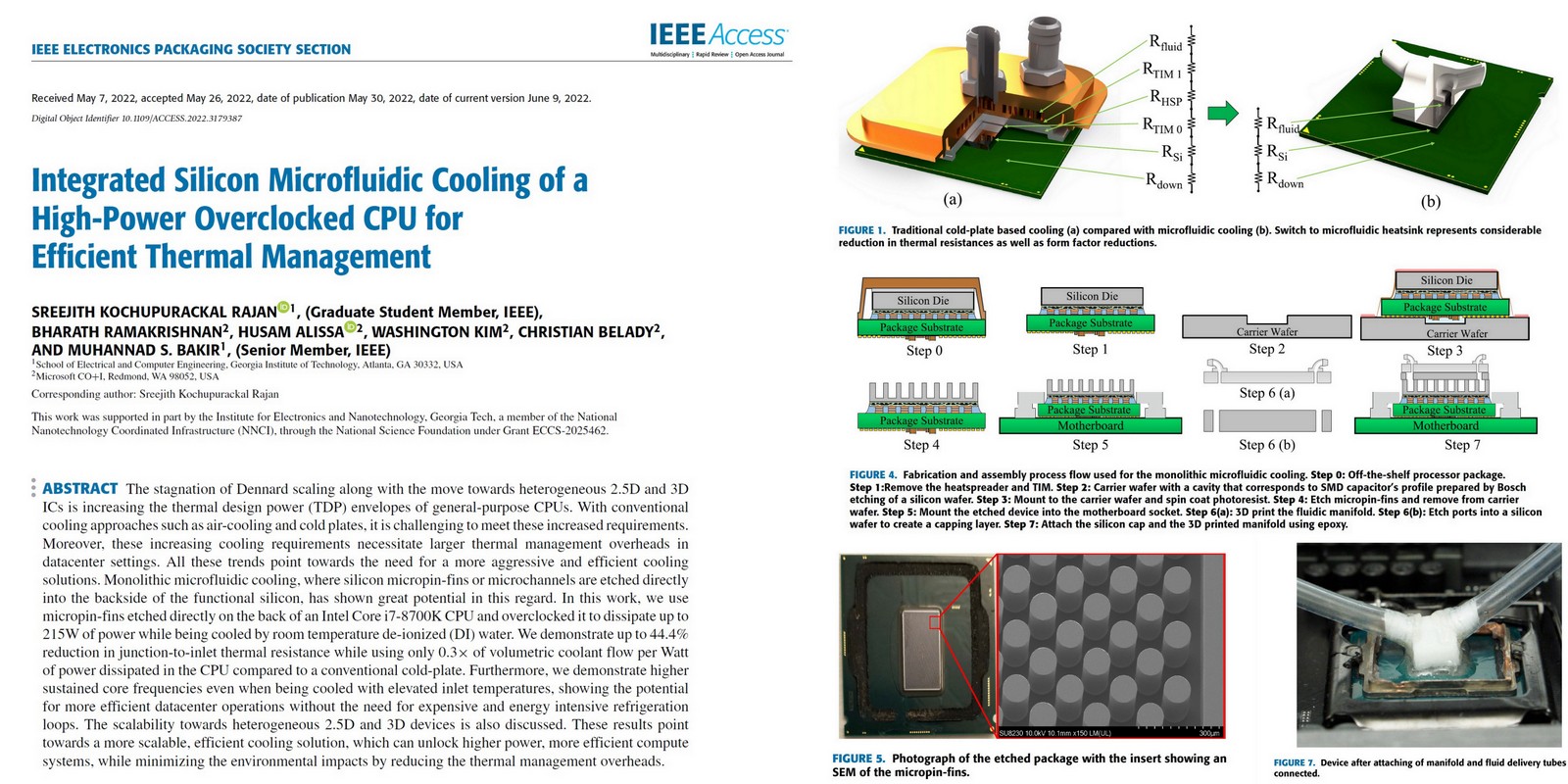

Micro pin-fin arrays and related microchannel structures increase surface area and improve local heat transfer in advanced cooling architectures.
Why power devices make the cooling challenge even more urgent
Microfluidic cooling is not only a CPU or AI accelerator story. It is highly relevant to power semiconductors as well. Materials such as gallium nitride (GaN) and silicon carbide (SiC) enable high-voltage and high-frequency operation, but they also create extremely demanding thermal conditions.
In power electronics for electric vehicles, telecom systems, and other high-heat-flux environments, more advanced cooling architectures are becoming essential. Researchers are moving beyond simple straight channels toward more complex 3D coolant-distribution networks, including manifold microchannel structures that improve fluid distribution inside the device.

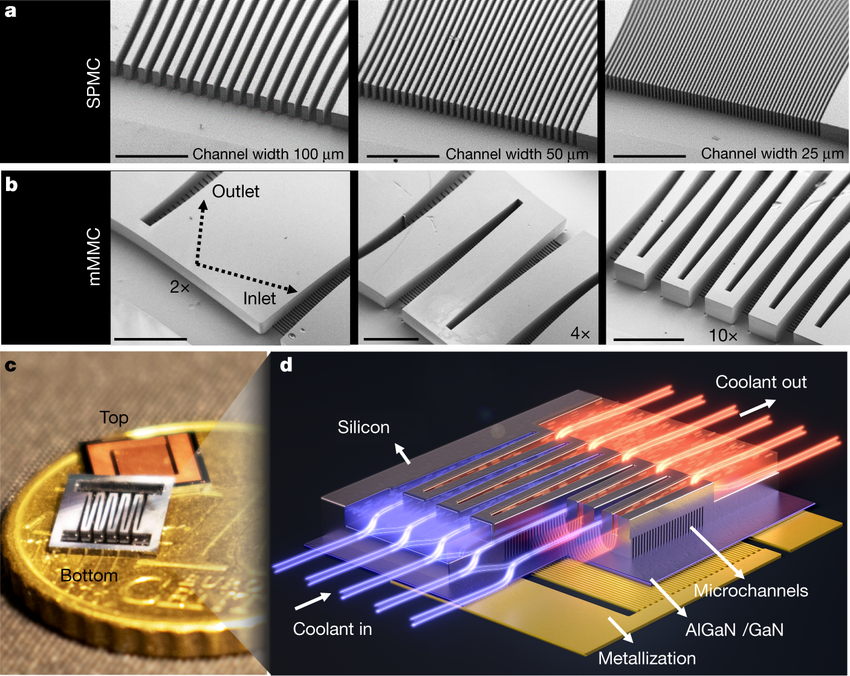

GaN-related cooling research is moving toward manifold-style and 3D microchannel networks to improve coolant distribution and thermal uniformity.
The thermal promise is strong, but so is the manufacturing burden. Once cooling paths become 3D, narrow, and densely integrated, fabrication quickly becomes one of the main barriers to real-world implementation.
Why microchannel manufacturing is so difficult
On paper, microfluidic cooling offers an elegant answer to next-generation heat management. In production, however, fabricating microchannels, micro pin fins, and manifold-like structures on chip-scale parts is far from simple.
1Hard and brittle materials
Silicon, GaN, and SiC are all difficult materials from a manufacturing perspective. Traditional machining can introduce chipping, cracking, and edge damage.
2Tight-pitch 3D structures
Heat transfer depends strongly on channel geometry. Pin-fin structures often outperform simple grooved channels but are harder and more expensive to manufacture.
3Smooth inner surfaces
Rough channel walls increase pressure drop and reduce efficiency. Low-roughness microchannel fabrication is a functional requirement.
4Prototyping flexibility
A process that supports flexible geometry changes without complex mask redesign can accelerate feasibility studies and development cycles.

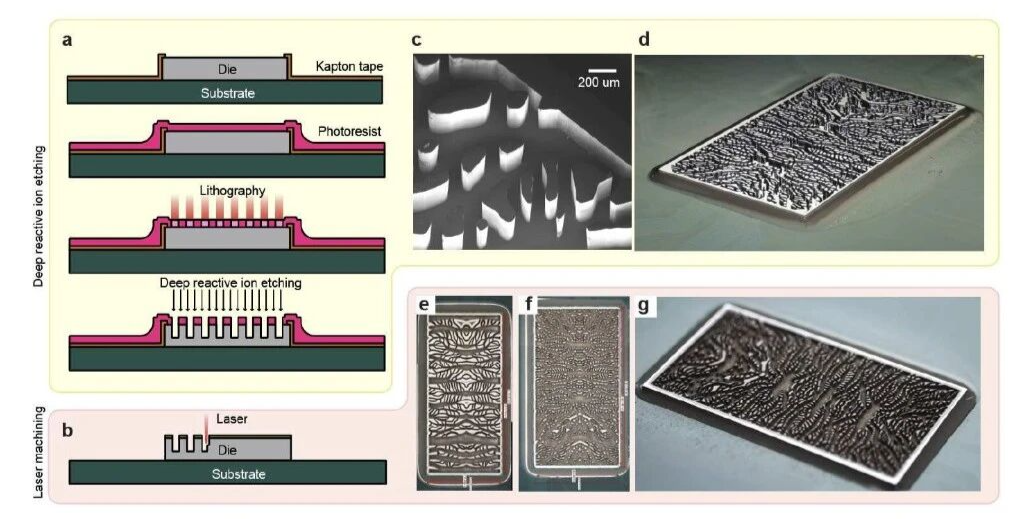

Example comparison of microfluidic cooling channel fabrication routes for chip-scale structures.
How existing process routes compare
| Requirement | Conventional Etching | Femtosecond Laser Micromachining |
|---|---|---|
| Material flexibility | Often process-specific | Adaptable to silicon, GaN, SiC, and more |
| Geometry freedom | Less flexible for iteration | Maskless; suited to complex grooves & fins |
| Thermal side effects | Depends on process route | Very low impact due to ultrashort pulses |
| Surface quality | Can require finishing | Roughness levels down to Ra 0.2 μm |
| Best-fit role | High-volume fabrication | High-value prototyping & microstructures |
What femtosecond laser micromachining could change
Femtosecond laser processing is attracting attention in microchannel manufacturing because it combines two qualities that are often difficult to obtain together: low thermal impact and high geometric flexibility.
Low thermal impact on fragile semiconductor materials
With ultrashort pulses in the 10-15-second range, femtosecond lasers minimize heat diffusion during material removal. This makes them attractive for fine machining on fragile silicon and other hard and brittle materials where cracks, chipping, or thermal stress can compromise device performance.
More freedom for complex cooling structures
Micro pin fins, grooves, flow distribution features, and non-standard patterns are difficult to prototype efficiently when each design change requires a heavily process-bound route. A maskless, geometry-flexible laser process can make early-stage cooling concepts easier to validate.
Surface quality matters in flow channels
Because microchannel efficiency depends strongly on hydraulic resistance, inner-wall quality is a major design issue. Femtosecond laser micromachining can support fine surface finishes, with roughness down to Ra 0.2 μm referenced in applicable microstructure machining scenarios.
This does not mean femtosecond lasers automatically replace every established semiconductor manufacturing route. Throughput and cost still need to align with the final application. But for next-generation liquid-cooling validation, complex microstructure development, and high-precision prototyping, femtosecond laser processing is a strong candidate.
Why this matters beyond AI chips
The value of microchannel manufacturing extends far beyond one category of processors. Similar cooling or fluid-control structures are relevant to data center hardware, power electronics, 3D-printing nozzles, thermal control modules, supercapacitor management, and even biomedical temperature-regulation systems.
Explore microchannel and semiconductor micromachining with MONO
If you are evaluating silicon microchannels, heat-sink structures, micro pin fins, or other precision cooling geometries, MONO can support your project with feasibility studies, femtosecond laser process development, and precision manufacturing solutions.
FAQ
What are microchannels in chip cooling?
Microchannels are very small coolant pathways fabricated close to the heat source, often in the chip substrate or related structures, to reduce thermal resistance and improve heat transfer.
Why are micro pin-fin structures attractive for liquid cooling?
They can increase effective heat-transfer area and improve cooling performance, although they also introduce higher manufacturing complexity and potentially higher pressure drop.
Why is femtosecond laser processing relevant to microchannel manufacturing?
Because it offers very low thermal impact, maskless flexibility, and strong capability for fine-feature machining on hard and brittle materials such as silicon and other advanced semiconductor substrates.
