Femtosecond Laser Drilling Taper: Zero, Positive & Negative

A femtosecond laser can position a beam to within a micron, and the hole it drills can still come out wider at one face than the other. That is not a machine fault. It is hole taper, a geometric property that shows up in nearly every laser-drilled micro-hole unless something is done about it. This guide breaks down the three geometries, positive, zero, and negative taper, and what actually causes each one.

What Is Hole Taper in Femtosecond Laser Drilling?

Hole taper is the geometric difference between a drilled hole's entrance diameter, where the beam enters the material, and its exit diameter, where the beam exits on the opposite face. In a perfectly straight bore, these two diameters match. In practice, most drilling processes produce some degree of laser drilled hole taper, because the beam's energy distribution changes as it travels deeper into the material.

Engineers quantify this as laser drilling taper angle: the angle between the hole wall and the drilling axis. A small taper angle, close to 0°, describes a near-straight bore. A larger angle describes a hole that narrows or widens noticeably from one face to the other. Taper angle is derived from the entrance diameter, the exit diameter, and the material thickness, and it is one of the first things engineers confirm during process validation for a new micro-hole application.

The Three Types of Hole Taper in Femtosecond Laser Drilling

Depending on how the beam is delivered, a drilled hole falls into one of three taper categories.

Positive Taper

Positive taper describes a hole where the entrance diameter is larger than the exit diameter. Picture a cone that narrows with depth: the beam cuts a wider opening at the surface it enters, then the diameter tapers down toward the far face. Positive taper laser drilling is the default outcome of most straight percussion drilling, because the beam naturally loses focus and intensity as it travels through the material. It is not automatically a defect. Some applications, such as countersunk fastener holes or self-centering alignment features, actually benefit from a controlled positive taper.

Zero Taper

Zero taper describes a hole where the entrance and exit diameters are approximately equal, producing a straight, cylindrical bore from one face to the other. Zero taper laser drilling is not the natural result of simple percussion drilling. It requires deliberate beam control, such as helical drilling or multi-axis trepanning, to counteract the natural convergence that causes positive taper. Zero taper (sometimes marketed as taperless laser drilling or taper-free drilling) is the standard for applications where hole diameter must stay consistent through the full material thickness, such as probe card guide plates and precision alignment bores.

Negative Taper

Negative taper describes a hole where the exit diameter is larger than the entrance diameter, the reverse of the positive taper case. Picture a cone that widens with depth, or a flare shape in cross-section. Negative taper laser drilling, also called reverse taper laser drilling, is achieved by intentionally reversing the beam's angle of incidence or focal position relative to the natural convergence direction. It is less common than positive or zero taper, but it solves real problems: nozzle geometries that need a wider internal chamber for flow control, or features that rely on a reverse-tapered profile for mechanical retention.

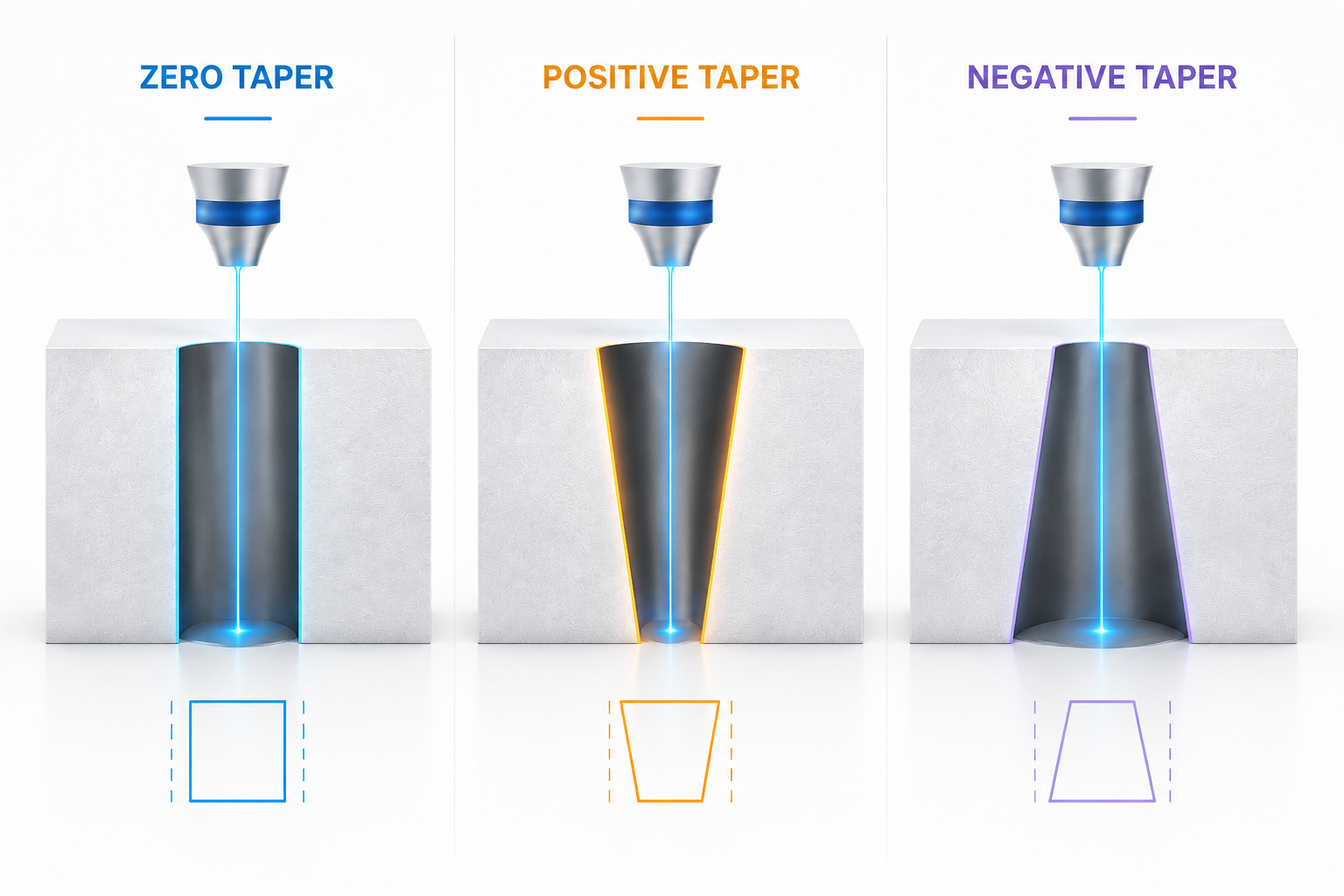

(Comparison of zero, positive, and negative taper hole geometries produced by femtosecond laser drilling.)

What Is Femtosecond Laser Drilling?

Femtosecond laser drilling uses ultrashort pulses, each lasting roughly 10⁻¹⁵ seconds, to remove material through a process usually called cold ablation. A femtosecond system, such as MONO's 1030/515 nm platforms, delivers extremely high peak power in a pulse so short that the surrounding material has no time to absorb and conduct heat away from the ablation point. Instead of melting and re-solidifying, the material transitions almost directly from solid to plasma and vapor, and is carried away before a heat-affected zone can form.

This matters for taper specifically. Longer-pulse processes, including nanosecond lasers, EDM, and mechanical drilling, tend to leave recast layers, microcracks, and melt bulges around the hole walls, all of which distort the true entrance and exit geometry and make taper harder to measure and control. Femtosecond laser drilling produces a cleaner, more geometrically consistent hole wall, which is the starting point for any meaningful taper control strategy.

Why femtosecond pulses are used for precision holes

The femtosecond pulse duration is shorter than the electron-phonon coupling time of most solid materials, typically 1 to 10 picoseconds. In practical terms, the pulse deposits its energy and ends before that energy can spread into the surrounding lattice as heat. Ablation proceeds through multiphoton ionization and avalanche ionization rather than through conventional melting, which is why femtosecond processing works on stainless steel, ceramics, sapphire, and polymer film with comparable precision: the removal mechanism does not depend much on what the material is.

For hole taper, the practical benefit is repeatability. Because each pulse removes a well-defined volume of material with minimal thermal side effects, the resulting entrance and exit geometry reflects the beam delivery strategy, straight percussion, helical drilling, or trepanning, rather than random thermal damage. That predictability is what makes it possible to deliberately engineer positive, zero, or negative taper on femtosecond systems, rather than simply hoping for a consistent result.

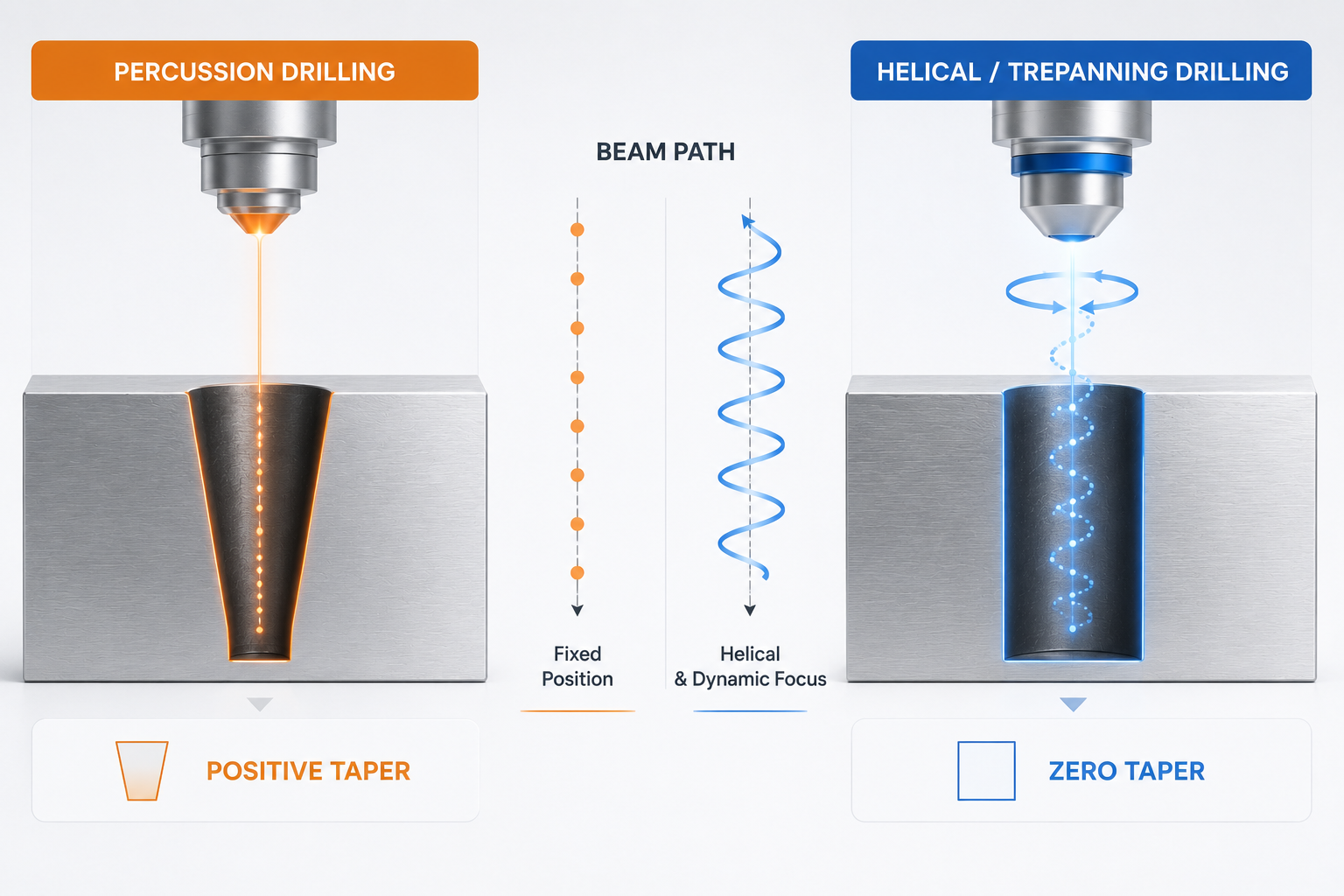

(Percussion drilling naturally produces positive taper, while helical or trepanning drilling enables controlled zero-taper hole geometries.)

Positive Taper Holes: Why They Naturally Occur

Positive taper is the default outcome of straight percussion drilling, where the laser fires repeatedly at a fixed position without beam rotation or focus adjustment. Three physical effects drive it:

• Beam divergence beyond the focal point. A focused beam is narrowest at its waist and diverges on either side of that point. If the beam is focused at or near the entrance surface, the ablation diameter tends to be larger near the entrance and smaller deeper into the material.
• Energy loss with depth. As the beam channels deeper into a forming hole, some energy is absorbed, scattered, or blocked by the hole walls and by vapor and plasma generated during ablation. Less usable energy reaches the bottom of the hole, so material removal there is less aggressive than at the entrance.
• Debris and vapor shielding. Ablated material escaping the hole can partially block or scatter subsequent pulses before they reach full depth, reinforcing the same entrance-larger-than-exit pattern pulse after pulse.

None of this is unique to femtosecond systems; it is a general property of focused-beam drilling. What changes with pulse duration is how much thermal distortion compounds the effect. Femtosecond cold ablation avoids the melt-driven bulging seen in longer-pulse processes, so the positive taper that does occur is more predictable and easier to characterize by taper angle, rather than obscured by recast material at the hole edges. Systems built for this kind of predictability, including MONO's femtosecond platforms, can hold a target positive taper angle consistently even at higher aspect ratios.

Taperless Holes: How Zero-Taper Laser Drilling Works

Achieving zero taper means counteracting the same effects that drive positive taper: beam divergence, energy loss with depth, and debris shielding, through two complementary beam delivery strategies.

Helical drilling moves the beam in a spiral path while continuously shifting the focal plane along the Z-axis, so the beam waist tracks the ablation front instead of staying fixed near the entrance surface. This removes material in concentric layers from the center outward, keeping fluence consistent through the full hole depth and giving engineers direct control over whether the result lands at zero taper or a deliberate small positive or negative bias.

A second approach uses multi-axis trepanning heads with precession optics that tilt the beam's incidence angle as it orbits the hole perimeter. Adjusting incidence angle, not just focal position, in real time compensates for the natural convergence behind positive taper and pushes the result toward true zero taper or a controlled negative taper.

Industrial femtosecond drilling systems typically combine these approaches in platforms such as MONO's ML-VORTEX series. Full control methods and taper control precision are covered in How to Control Femtosecond Laser Drilling Taper.

Negative Taper Holes: How Reverse-Taper Laser Drilling Works

Negative taper reverses the usual pattern: the exit diameter ends up larger than the entrance diameter. Since natural beam convergence pushes geometry toward positive taper, producing negative taper means actively working against that tendency, not just neutralizing it the way zero-taper drilling does.

The mechanism extends the same multi-axis, precession-based beam delivery used for zero taper, but with the incidence angle tilted in the opposite direction, so the beam removes proportionally more material near the exit face than near the entrance. In practice, this means positioning the focal point deeper in the material relative to the entrance surface, and adjusting the trepanning or helical scan path so material removal is biased toward the far side of the hole.

Compared with positive and zero taper, negative taper generally requires more sophisticated beam steering and process control. It is also a smaller share of real-world orders than positive or zero taper, but it solves specific problems. Nozzle and flow control components sometimes need a wider internal chamber to shape a spray or flow pattern correctly even though the entrance opening must stay small. Some mechanical retention features rely on a reverse-tapered internal profile to lock a filled material or component in place.
