Solving Silicon Nitride Probe Card Machining Challenges with Femtosecond Lasers

Silicon nitride (Si₃N₄) has become a critical material for advanced semiconductor probe cards due to its exceptional hardness, high thermal stability, and excellent electrical insulation.

However, these same properties make it extremely difficult to machine.

Traditional mechanical drilling and nanosecond laser processing often cause catastrophic defects when dealing with brittle ceramics, leading to edge chipping, microcracks, and recast layers. For semiconductor probe cards, even a microscopic defect can cause probe pins to stick, leading to unstable electrical contact and reduced wafer testing yields.

Why Probe Card Micro-Holes Require Extreme Precision

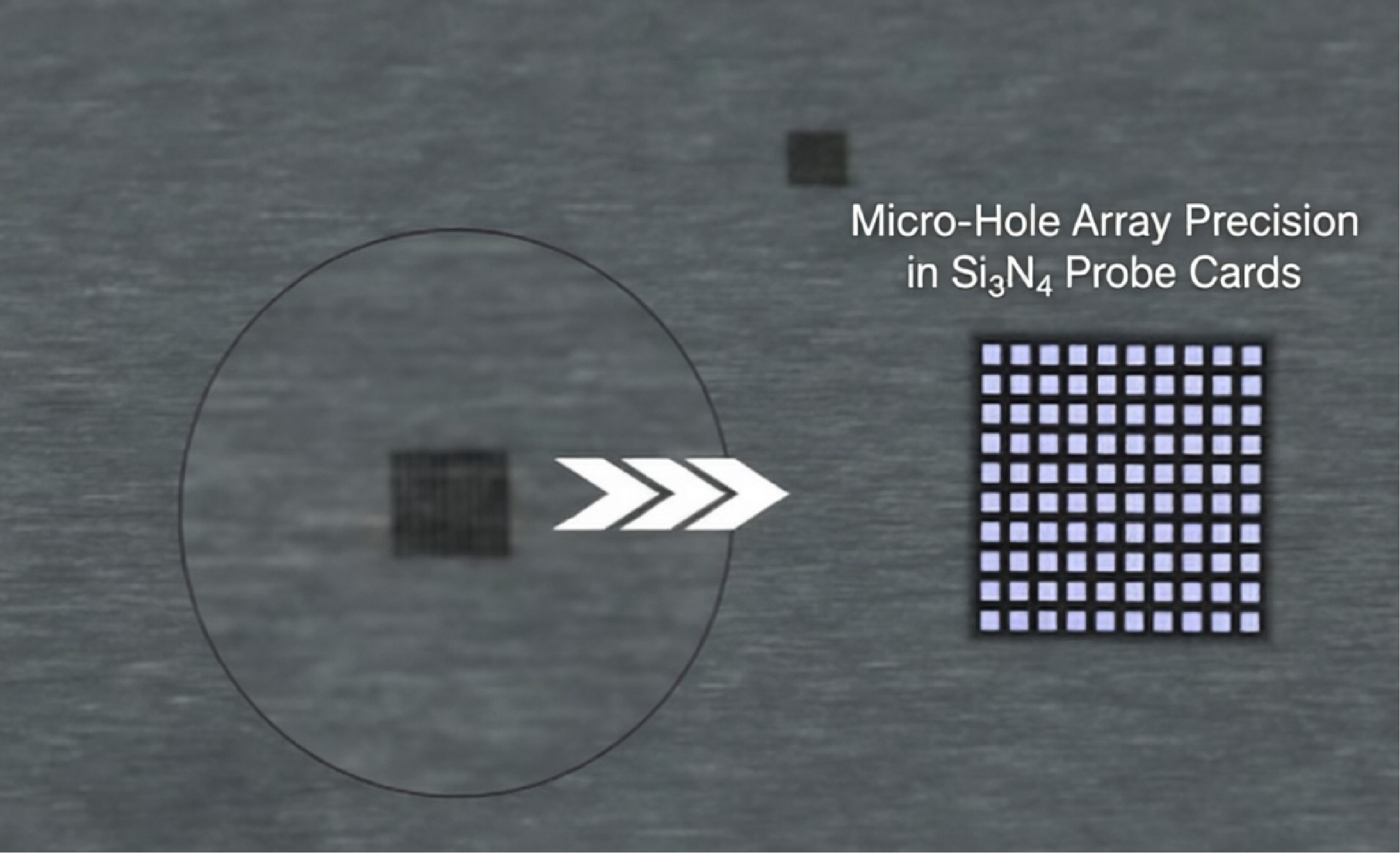

Modern probe cards often require thousands of high-precision micro-holes with pitches below 100 microns. Each individual hole must achieve:

• Perfect geometric consistency (true square or circular morphology)
• Sub-micron dimensional uniformity across the entire substrate
• Burr-free inner walls to eliminate pin friction
• Minimal thermal deformation

Even slight deviations can cause probe pins to stick, skew, or lose alignment during testing. This may directly result in:

• Unstable electrical signals
• Reduced testing accuracy
• Lower wafer yield
• Increased manufacturing costs

If the inner wall surface is rough or mechanically stressed, probe pins will skew or lose alignment during high-speed wafer sorting. As semiconductor devices continue shrinking, the tolerance for machining errors becomes virtually zero.

Why Traditional Lasers Struggle with Silicon Nitride

Conventional nanosecond laser systems rely on photothermal energy to melt and vaporize material. When processing brittle ceramics like silicon nitride, this excessive heat diffusion creates intense localized thermal stress around the cutting edge, frequently causing micro-cracking.

Compared with traditional laser processing, femtosecond laser technology offers major advantages:

How Femtosecond Laser Cold Ablation Solves the Problem

Femtosecond laser machining uses ultrashort pulse durations in the femtosecond range (10⁻¹⁵ s) to remove material before heat can diffuse into surrounding regions.

This process is commonly known as cold ablation.

Because the pulse duration is shorter than the electron-phonon relaxation time of silicon nitride, laser energy is deposited before significant thermal conduction occurs. As a result, material removal can be achieved with an extremely small heat-affected zone (HAZ).

Typical processing wavelengths around 1030–1035 nm enable stable multi-photon absorption in Si₃N₄ materials despite their relatively wide bandgap (~5 eV).

By utilizing femtosecond pulses, the material transitions directly from a solid to a plasma phase, enabling material removal with almost no thermal damage. This cold ablation process delivers:

• Zero-burr square micro-hole machining
• Minimal edge chipping
• Ultra-smooth inner walls
• Reduced thermal stress
• Exceptional dimensional consistency
• High repeatability across large arrays

This makes femtosecond lasers especially suitable for brittle ceramic materials used in semiconductor manufacturing.

For probe card applications, smoother inner walls help reduce probe pin sticking and improve long-term wafer testing stability.

Beyond Probe Cards: Additional Silicon Nitride Applications

The reliability of femtosecond laser precision machining has already been demonstrated across multiple advanced applications.

Integrated Photonics

Femtosecond lasers can optimize silicon nitride waveguide resonators by reducing surface roughness and improving optical Q factors.

Nanopore Fabrication

The technology also supports highly localized nanopore fabrication in ultra-thin Si₃N₄ membranes, including structures below 500 nm diameter.

Precision Ceramic Micro-Machining

Additional applications include:

• Ceramic micro-drilling
• MEMS fabrication
• Bio-microfluidic structures
• Semiconductor packaging
• Thin-film precision processing

These applications further demonstrate the scalability and industrial maturity of femtosecond laser processing technology.

Why Semiconductor Manufacturers Choose Monofslaser

At Monofslaser, we specialize in industrial femtosecond laser precision micro-machining for semiconductor and advanced ceramic applications.

Rather than supplying standalone equipment only, we provide integrated manufacturing solutions tailored for high-precision industrial production.

Our capabilities include:

• Custom femtosecond laser equipment development
• Silicon nitride probe card processing
• Rapid prototyping and sample validation
• Optical and SEM inspection support
• Process optimization for scalable production

We support both prototype development and high-volume manufacturing for advanced semiconductor applications.

Compared with traditional processing methods, femtosecond laser cold ablation significantly reduces post-processing requirements while improving machining consistency and first-pass yield.

Conclusion

Silicon nitride's hardness and brittleness push traditional machining methods far beyond their physical limits. Femtosecond laser cold-ablation technology elegantly solves these manufacturing barriers, delivering sub-micron precision, zero-burr inner walls, and micro-crack-free hole arrays. For advanced semiconductor probe card production, it represents the most reliable path to achieving high-yield wafer testing results.
