How Femtosecond Lasers Machine ESC Mesa Structures on SiC
Electrostatic chucks are essential wafer-holding components in semiconductor front-end equipment. They must maintain stable wafer support while operating in demanding process environments such as etching, deposition, and ion implantation. On many high-end ESC designs, one of the most important surface features is the mesa structure: a raised microfeature that sits between the wafer and the dielectric layer of the chuck.
What an ESC mesa structure does
Although an ESC mesa is small in size, it plays a large functional role. A well-designed mesa helps create local electrostatic support conditions, provides controlled wafer contact, forms backside gas-flow channels, and contributes to thermal and plasma-related performance. In other words, mesa features are not cosmetic. They are part of the functional architecture of the chuck surface.
That is why ESC mesa machining must be evaluated in terms of more than geometry alone. Feature height, consistency, edge condition, and surface quality all influence whether the final chuck performs as intended in production use.
Why SiC ESC mesas are difficult to machine
Silicon carbide is hard, brittle, and challenging to process
Silicon carbide is widely used for high-end ESCs because it combines high hardness, thermal stability, strong thermal conductivity, and chemical resistance. Those same properties also make it difficult to machine. Conventional methods can suffer from rapid tool wear, chipping, cracking, and inconsistent local geometry, especially when large arrays of micro-scale structures must be produced on a single surface.
ESC mesas require consistency across the whole surface
Mesa structures are functional arrays, not isolated decorative features. If height, diameter, spacing, or local profile varies too much from one region to another, wafer clamping behavior, backside gas distribution, and thermal uniformity can all be affected. That is why ESC mesa manufacturing is fundamentally a consistency problem as much as a feature-formation problem.
Surface quality matters because the wafer interfaces with the structure
Mesa roughness and flatness influence both contamination risk and local wafer contact conditions. In a semiconductor environment, particle control and contact stability are essential, so surface finish becomes a core engineering requirement rather than a secondary detail.
Why femtosecond laser processing is well suited to ESC mesas
Low thermal impact helps protect brittle SiC
Femtosecond laser processing removes material with minimal heat diffusion into the surrounding region. This is highly beneficial on hard and brittle materials such as silicon carbide, where thermal stress and crack formation can be difficult to control with conventional approaches. For ESC surfaces, lower thermal impact helps preserve local material integrity while supporting cleaner structure formation.
Depth-controlled etching is a strong match for mesa geometry
Mesa structures depend on controlled depth and stable geometry. Femtosecond laser processing is well suited to this because it enables precise depth-controlled etching rather than simple bulk removal. In representative SiC ESC mesa work, mesa structures with a depth of 150 μm have been achieved with dimensional control within ±3 μm.
- Mesa depth: 150 μm
- Dimensional control: ±3 μm
- Etched roughness: Ra≤0.6 μm
- Potential finer finish under lower-throughput conditions: toward Ra≤0.4 μm
Non-contact processing improves repeatability
Because femtosecond laser processing is non-contact, it avoids many of the consistency issues associated with tool wear in mechanical machining. This is especially valuable when many mesa features must behave uniformly across the chuck surface. Stable, repeatable surface microstructures are one of the strongest reasons to consider ultrafast laser processing for ESC development and production.
Related equipment and process pages include ML-ETCH, ML-VORTEX, Femtosecond Laser Etching, and Semiconductor & Electronics Micromachining.
Key performance metrics for ESC mesa fabrication
In ESC mesa manufacturing, the most useful metrics are the ones that connect directly to function: mesa depth, dimensional control, surface finish, and feature-to-feature consistency. On silicon carbide, femtosecond laser processing supports these metrics in a way that aligns well with high-value semiconductor applications.
When engineering discussions move beyond “can the feature be made?” and toward “can the feature be made consistently and cleanly?”, femtosecond laser processing becomes especially relevant.

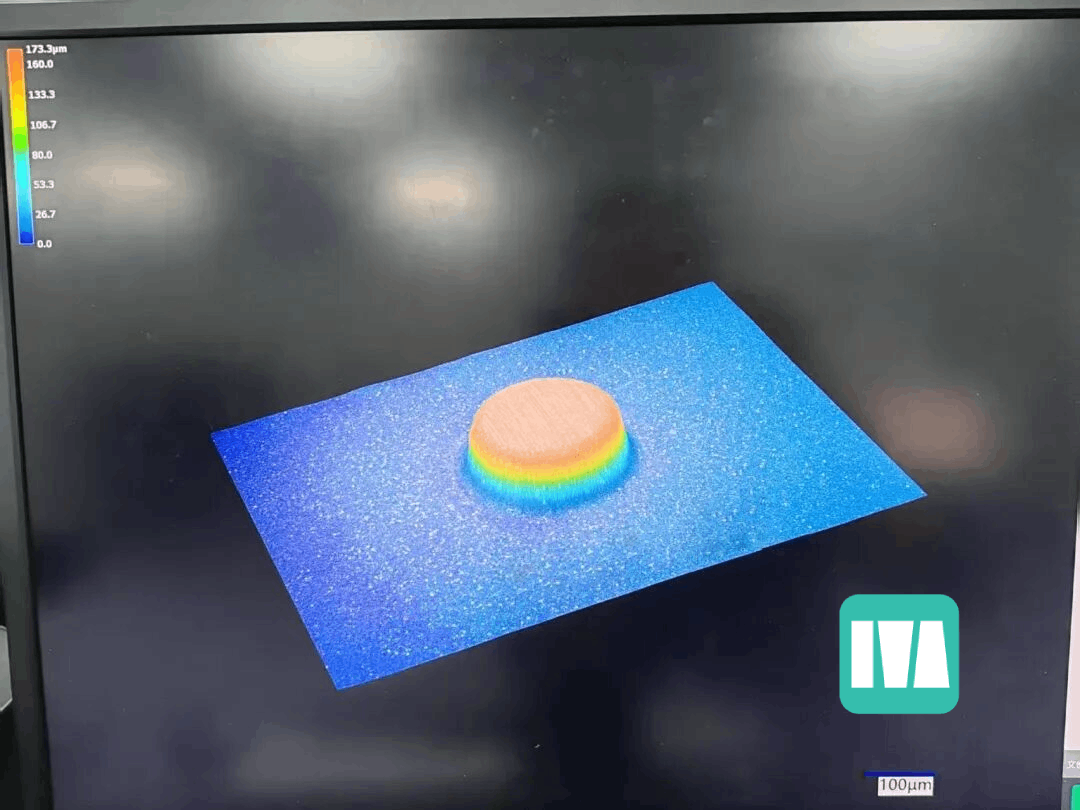

What confocal measurement shows
Confocal microscopy is particularly useful for evaluating 3D topography, section profiles, and fine surface characteristics on mesa-type microstructures. For a functional ESC surface, that kind of measurement is valuable because it connects visual topography with engineering performance.
Why surface roughness matters
A smoother mesa surface can help reduce particle risk and improve wafer contact stability. For that reason, roughness is not just a cosmetic target. It is a performance-related metric for semiconductor chuck surfaces.
Why consistency matters
Feature consistency across the array is equally important. If mesa depth varies too much from one zone to another, local electrostatic behavior, gas-flow distribution, and thermal response can all become less uniform. That is why consistency is a defining requirement in this type of microstructure manufacturing.
Where this process is most relevant
Femtosecond-laser-machined ESC mesa structures are especially relevant to front-end semiconductor equipment where wafer holding stability, particle control, and thermal uniformity are critical. Typical environments include etchers, PVD systems, CVD systems, and ion implantation tools.
Conclusion
Machining ESC mesa structures on silicon carbide is not simply about creating raised microfeatures. It is a combined challenge involving hard and brittle material behavior, strict dimensional control, surface quality requirements, and large-area consistency. Femtosecond laser processing is well suited to that challenge because it brings together low thermal impact, controlled etching, and non-contact repeatability in a single process route.
