Laser Cutting for Interventional Medical Devices: Fiber vs. Femtosecond laser
In the manufacturing of interventional medical devices—such as hypotubes, catheters, guidewires, and micro-blades—laser cutting has long been the gold standard. Historically, Fiber lasers were the go-to choice for their speed and cost-effectiveness. However, as devices trend toward extreme miniaturization and complex geometries, Fiber lasers are hitting a physical "wall."
For R&D engineers and production managers, understanding the boundary between Fiber and Femtosecond technology is critical for balancing yield, quality, and total cost of ownership.
The Underlying Physics: Thermal Melting vs. Cold Ablation
- Fiber Lasers (Thermal Processing): Operating in the microsecond or nanosecond range, Fiber lasers work by heating the metal to its melting point and blowing away the molten material with high-pressure gas. This inevitably creates a Heat-Affected Zone (HAZ) and a recast layer.
- Femtosecond Lasers (Cold Processing): With pulse durations in the quadrillionths of a second, the energy is delivered so rapidly that the material sublimates directly from solid to gas. This "Cold Ablation" occurs before heat can conduct to the surrounding area, resulting in zero thermal damage.
The Three Critical Thresholds: Why Fiber Fails in Micro-Machining
As device features shrink, the thermal nature of Fiber lasers leads to three primary failure points:
A. Feature Sizes < 50μm (The "Charring" Effect)

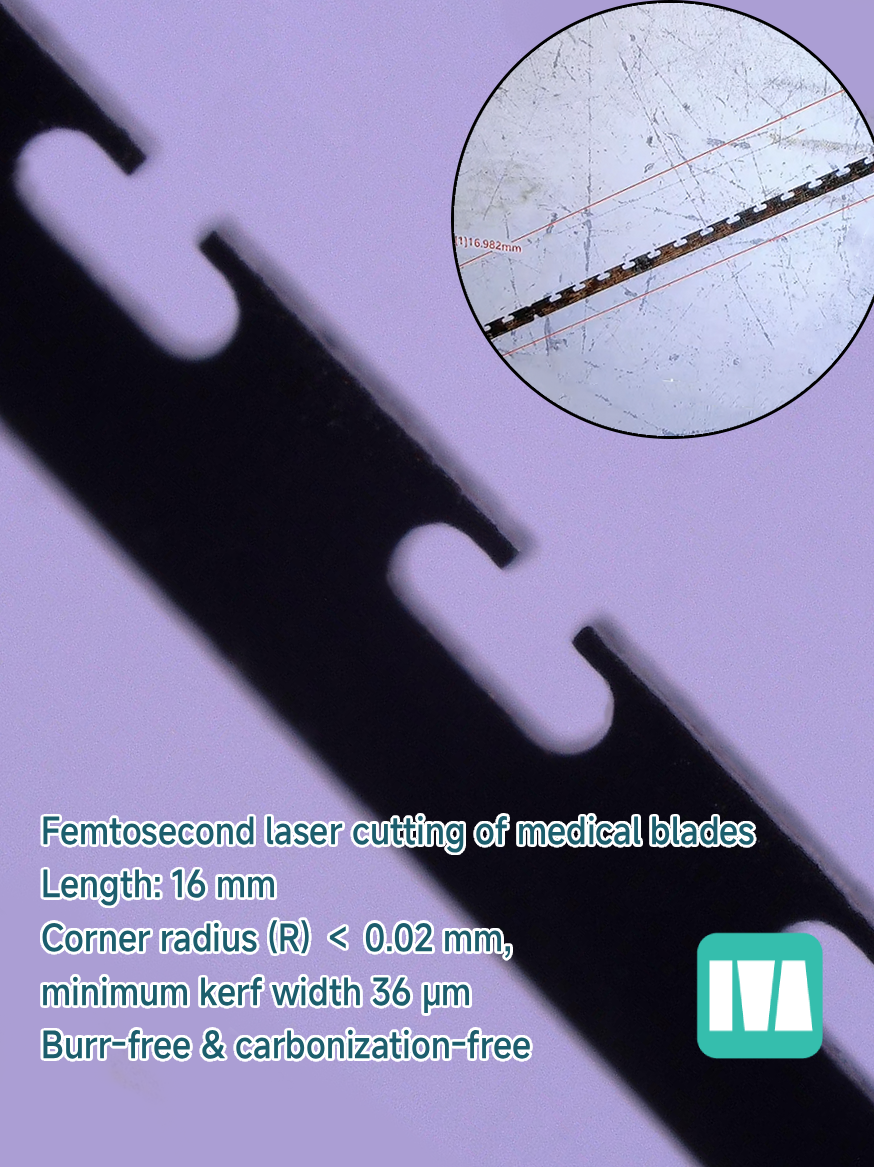

Modern micro-blades often feature slot widths as thin as 30–40μm. The Fiber laser’s melt pool is often larger than the feature itself, leading to dross (slag) and structural warping. The heat effectively "muddies" the edges, destroying the sharpness and integrity of the component.
B. Precise R-Angles and Complex Geometries
Interventional tools require specific cutting angles for mechanical interlocking. Fiber lasers cause localized heat accumulation in tight corners, creating brittleness. This increases the risk of catastrophic device failure (snapping) during clinical use.
C. Tight Tolerances (< ±10μm)
Fiber cutting leaves burrs that require heavy post-processing (acid etching or polishing). These secondary processes "eat away" at the material, making it nearly impossible to maintain a final tolerance tighter than ±10μm. Femtosecond lasers yield a mirror-like finish, maintaining final tolerances of ±3μm to ±5μm.

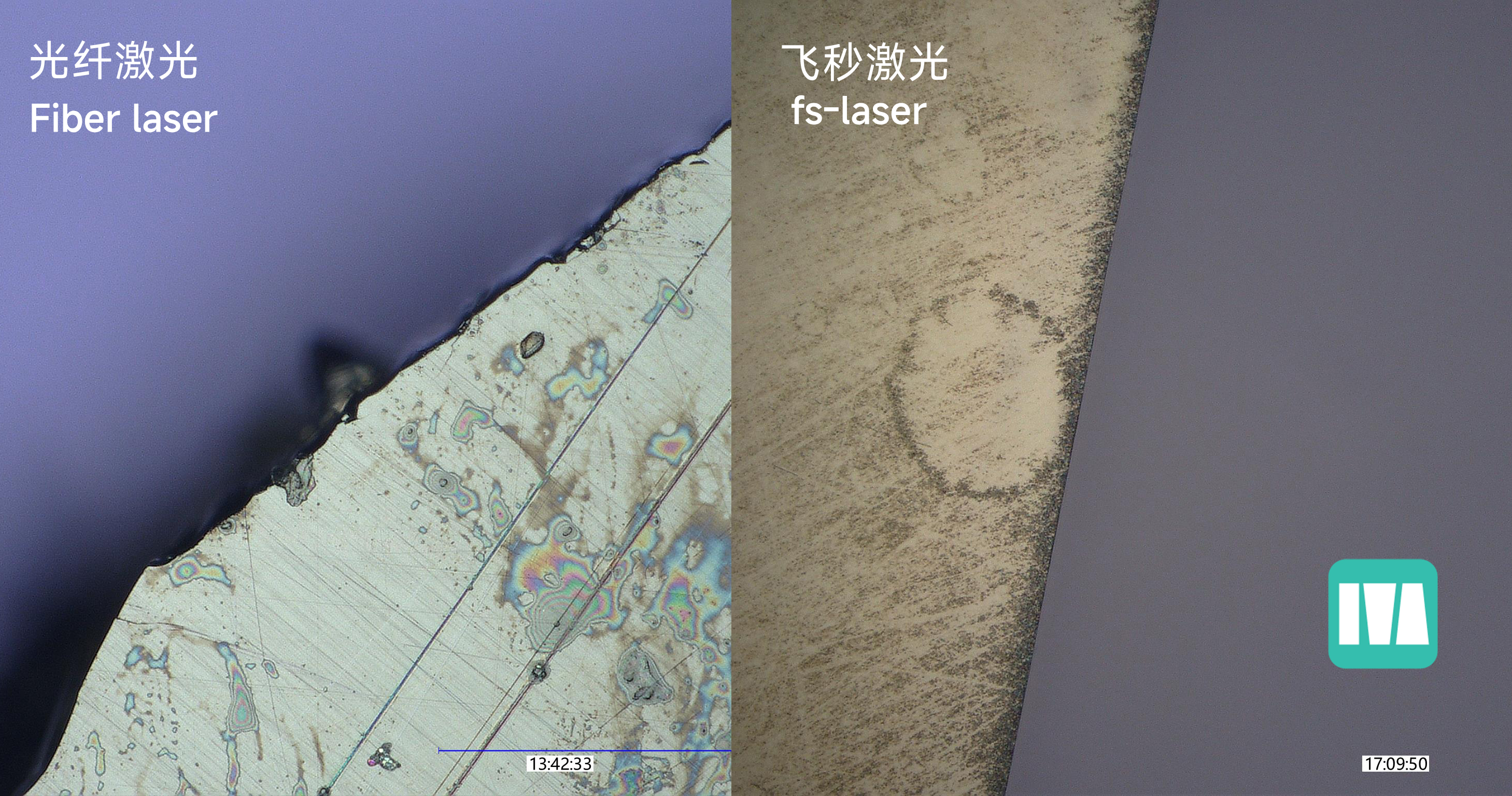

Comparison Summary: Fiber vs. Femtosecond
| Feature | Fiber Laser | Femtosecond Laser |
|---|---|---|
| Process Type | Thermal Melting | Cold Ablation (Sublimation) |
| Heat-Affected Zone | Significant (Micro-cracks) | Negligible (Zero thermal damage) |
| Precision / Tolerance | ±15μm ~ ±25μm | < ±5μm |
| Surface Quality | Burrs/Slag present | Burr-free; Mirror-like finish |
| Typical Yield Rate | ~70% for micro-parts | > 95% |
4. Engineering Selection Guide
💡 Choose Fiber Lasers if: Your project involves large-scale production of standard stainless steel tubes with wall thicknesses >0.5mm, where tolerances are loose and post-processing is cost-effective.
🚀 Choose Femtosecond Lasers if: You are working with Nitinol, Cobalt-Chrome, or ultra-thin polymers, and your design requires zero micro-cracks for fatigue resistance or features smaller than 50μm.
While Femtosecond equipment represents a higher initial investment, the dramatic reduction in scrap rates and the elimination of secondary processing result in a lower total cost per part. For next-generation minimally invasive devices, Femtosecond technology is a necessity.
