Molybdenum Aperture Machining: Burr-Free Precision with Femtosecond Lasers
Molybdenum apertures sit at the center of instruments that depend on exact beam geometry, used in equipment ranging from electron microscopes to semiconductor ion implanters. A single micron of deviation in hole diameter or edge quality can distort the beam path and compromise the entire measurement or process. Molybdenum is hard, brittle, and prone to oxidizing under heat, so conventional machining methods often struggle to hold the tolerances these components demand.
Femtosecond laser machining offers a cold, non-contact alternative. The process ionizes and vaporizes material directly instead of melting it, which removes the heat-affected zone, recast layer, and microcracking that make molybdenum difficult to work with. This article covers what a molybdenum aperture is, why the material resists conventional processing, and how femtosecond lasers achieve the burr-free precision these components require.
What Is a Molybdenum Aperture?
A molybdenum aperture is a precisely sized opening, usually circular or slit-shaped, machined into a molybdenum disc, foil, or diaphragm to block, limit, or select a beam of particles or light passing through an instrument. Manufacturers choose molybdenum for this role because it holds its shape under vacuum and heat, resists erosion from repeated ion or electron bombardment, and conducts enough heat and electrical current to dissipate the energy a beam deposits on the aperture edge. MONO's tungsten-molybdenum process page covers this material family in more detail.
These components appear as disc apertures, strip apertures, and diaphragm-style parts across several fields:
- Electron microscopy and focused ion beam (FIB) systems, where objective and condenser apertures shape the electron or ion beam
- X-ray systems and imaging equipment, where apertures collimate or limit the beam path
- Semiconductor ion implantation, where beam-defining slits select ions by mass and energy before they reach the wafer
- Vacuum electron optics, including grids and electrodes that shape or gate an electron beam
Why Is Molybdenum Difficult to Machine?
- Molybdenum melts at roughly 2,620°C, among the highest melting points of any engineering metal. Thermal cutting or drilling has to put a lot of energy into the material before it separates.
- Hardness typically exceeds 300 HV, and the material stays brittle at room temperature, so mechanical stress or thermal shock tends to chip or crack it.
- Poor ductility at room temperature rules out stamping or punching for fine features. Thin molybdenum foil tends to crack at the edge instead of shearing.
- Above roughly 600°C the surface oxidizes in open air. Localized heating risks discoloring or degrading the machined edge.
- Aperture holes often need single-digit to low double-digit micron diameters, close to the physical limit of mechanical drill bits and EDM wire.

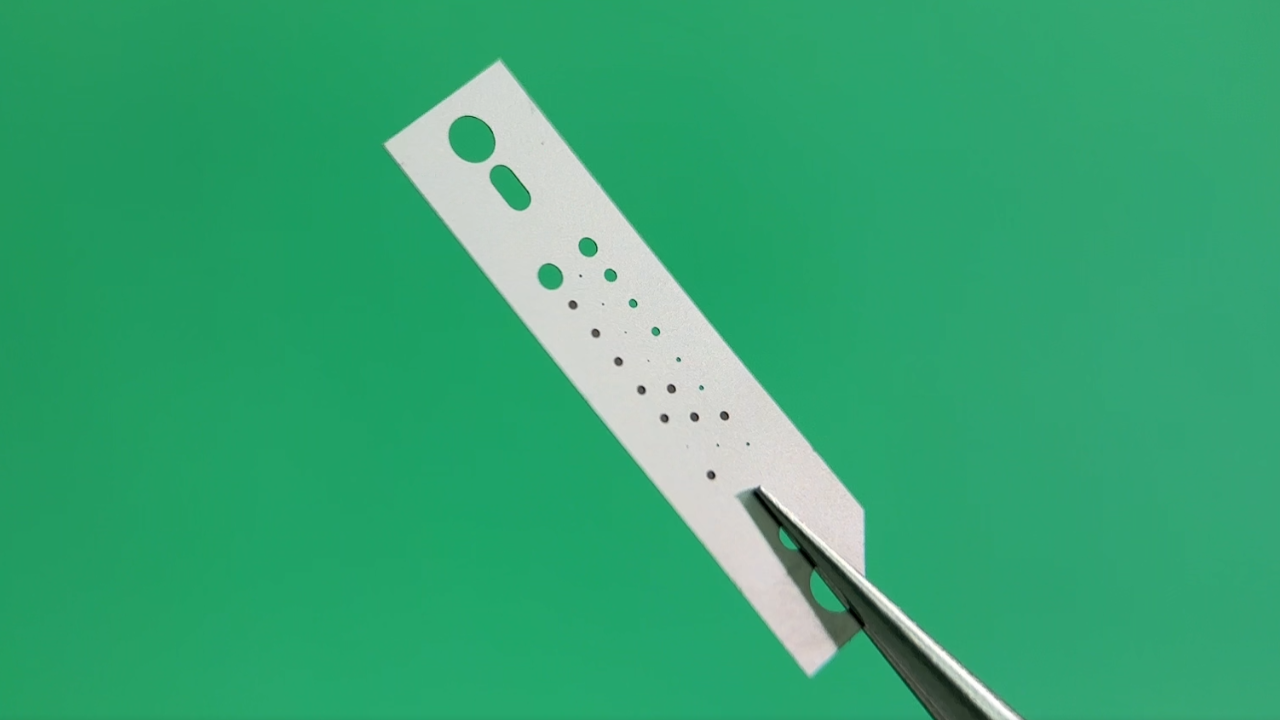

(Custom molybdenum aperture featuring precision micro-holes and narrow slits produced by femtosecond laser machining.)
Why Femtosecond Laser Is Ideal for Molybdenum Apertures
A femtosecond laser fires pulses roughly a million times shorter than a nanosecond laser. The pulse ends before heat has time to spread, so the laser ionizes and vaporizes molybdenum directly. MONO's femtosecond laser micromachining systems apply this cold ablation principle, holding sub-micron positioning accuracy.
Comparison Table: Femtosecond Laser vs. Nanosecond Laser
| Parameter | Femtosecond Laser | Nanosecond Laser |
|---|---|---|
| Interaction with material | Direct ionization and vaporization (cold ablation) | Surface heats, melts, then vaporizes |
| Heat-affected zone (HAZ) | Typically under 2μm, often below standard metrology limits | Typically 10-50μm on metals |
| Recast layer / debris | Minimal to none | Present, resolidified material forms measurable layer |
| Microcracking risk | Low, no thermal shock | Higher; HAZ acts as a stress riser |
| Edge quality | Burr-free, clean-cut edges | Burr formation common |
| Oxidation risk | Low, minimal heat input | Higher, localized heating promotes oxidation |
| Best suited for | Fine apertures, tight tolerances, brittle materials | Thicker, less heat-sensitive materials |
*Nanosecond figures reflect published laser-materials research (TEM/EBSD studies). Femtosecond figures are drawn from equipment specifications and project results.*
Typical Machining Capabilities
Hole and Slit Drilling
| Parameter | Capability |
|---|---|
| Hole diameter range | 0.02mm-2.5mm (as fine as 0.015mm demonstrated) |
| Precision / concentricity | ≤±1μm / ≤1.5μm |
| Taper control precision | ≤±1μm |
| Max depth-to-diameter ratio | 12:1 |
Outer Contour and Slit Cutting
| Parameter | Capability |
|---|---|
| Minimum line/slit width | ≥3μm |
| Dimensional accuracy | ≤±0.5μm |
| Comprehensive processing accuracy | ≤±3μm |
| Surface roughness | ≤Ra0.1 |
A recent molybdenum electrode cutting project held a 0.19mm ± 0.003mm cut width through 0.05mm-thick material, illustrating high accuracy on thin stock.
Ultra-Precision Sub-Micron Features
| Parameter | Capability |
|---|---|
| Minimum hole diameter | ≥500nm, customizable |
| Minimum line width | ≥300nm, customizable |
| Hole diameter precision | ≥±50nm, customizable |
Positioning accuracy holds to ≤±1μm on X, Y, and Z axes. All configurations run under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified quality management.

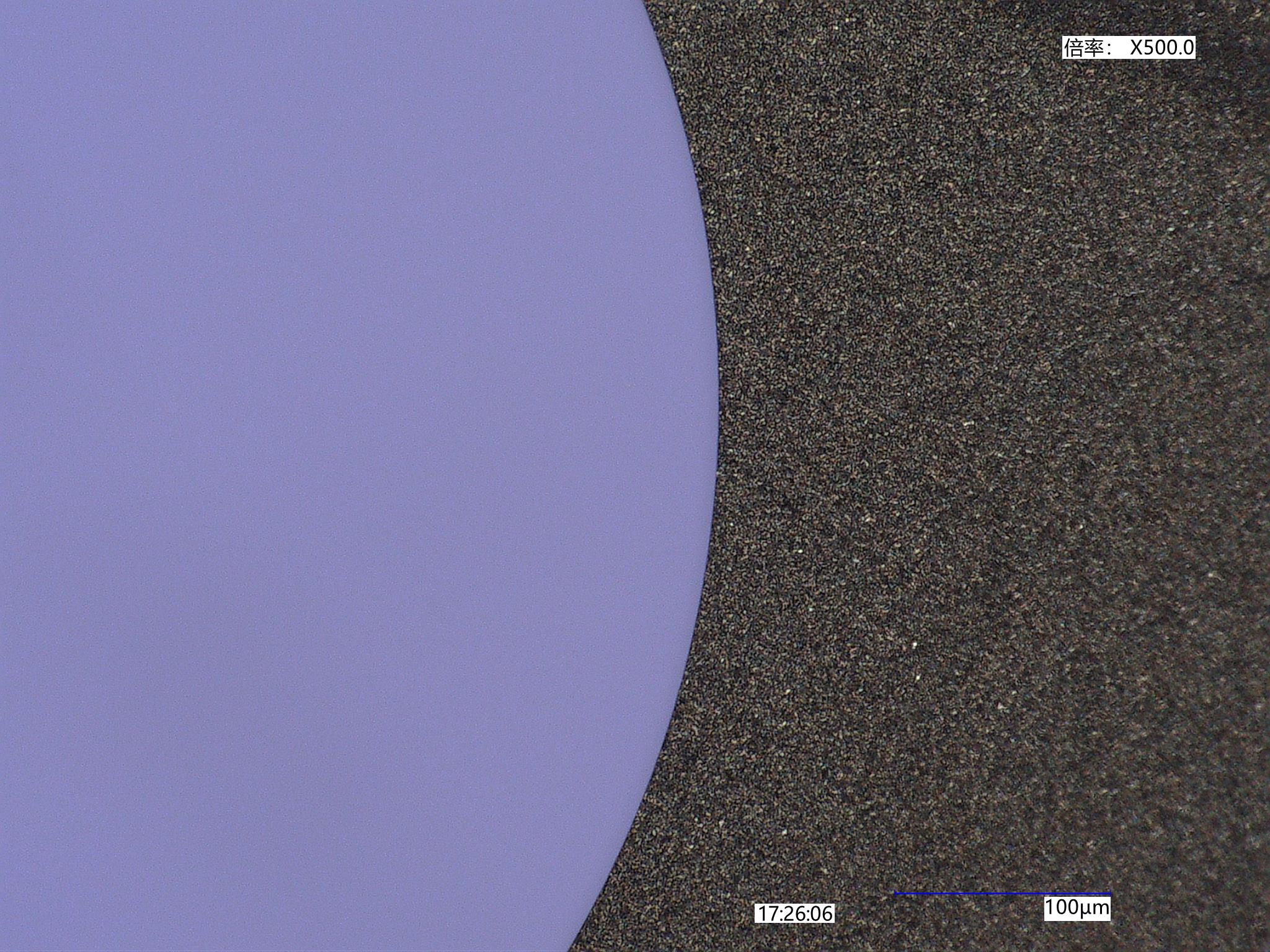

(Burr-free micro-holes produced by femtosecond laser machining in a molybdenum aperture, demonstrating clean edges and high dimensional precision.)
Typical Applications of Molybdenum Apertures
- Semiconductor manufacturing, including electrode cutting for beam-handling equipment
- Biomedical imaging, including etched molybdenum components used in X-ray tube assemblies
- Optical and metrology instruments, where aperture geometry governs beam-shaping performance
MONO's semiconductor and electronics micromachining page has more on beam-handling work.
Custom Femtosecond Laser Machining
Aperture specifications rarely follow a standard catalog. MONO typically runs a feasibility and process validation step first, confirming tolerances on the customer's actual material.
Once validated, MONO's contract manufacturing service handles small-batch and prototype quantities.
FAQ
What hole diameters can be achieved in molybdenum apertures?
Can femtosecond lasers machine thin molybdenum foils?
Can custom aperture shapes and hole patterns be manufactured?
Why choose femtosecond laser instead of nanosecond laser for molybdenum?
Can you support custom aperture shapes and sizes?
Have a molybdenum aperture drawing ready?
Share your drawing or specifications, and we'll evaluate feasibility, tolerances, and the most suitable femtosecond laser machining solution for your application.
Request a Feasibility Review
