Overcoming Tungsten & Molybdenum Barriers with Femtosecond Lasers
2025-11-21
Tungsten, molybdenum, and their alloys are indispensable "foundational materials" in high-end manufacturing, lauded for their exceptional melting points, hardness, and conductivity. However, their inherent "difficult-to-machine" nature presents a significant industry challenge: traditional processes struggle to simultaneously achieve high machining precision and preserve material integrity. The advent of femtosecond laser technology offers a transformative solution for the ultra-precision processing of these demanding materials. MONO’s advanced femtosecond laser solutions are designed to break through these processing barriers, enabling high-quality industrial development.
Three Core Capabilities for Tungsten & Molybdenum Processing
The primary challenge in processing tungsten and molybdenum lies in their extreme physical properties: tungsten boasts a melting point up to 3422°C, molybdenum 2623°C; their hardness can exceed HRC65, coupled with high brittleness and strong thermal conductivity. This often results in a "triple dilemma" for traditional methods: "insufficient precision," "material damage," and "low efficiency."
Femtosecond laser technology offers a paradigm shift through "cold ablation." With pulse durations as short as a quadrillionth of a second, its energy instantaneously vaporizes material before heat can conduct, fundamentally eliminating heat-affected zones. This ensures sharp, burr-free, and microcrack-free edges—making it the ideal solution for ultra-precision processing of hard and brittle materials.
MONO’s femtosecond laser micro-nano processing centers leverage three core capabilities to tackle these challenges:
Micron-level Drilling:
Micron-level Drilling: We achieve micron-level precision for high-aspect-ratio microholes, taper-free straight-through holes, and even complex hole arrays. This is critical for manufacturing high-performance components like nozzles, filters, and probe cards. (See case: 18μm taper-free drilling on tungsten.)

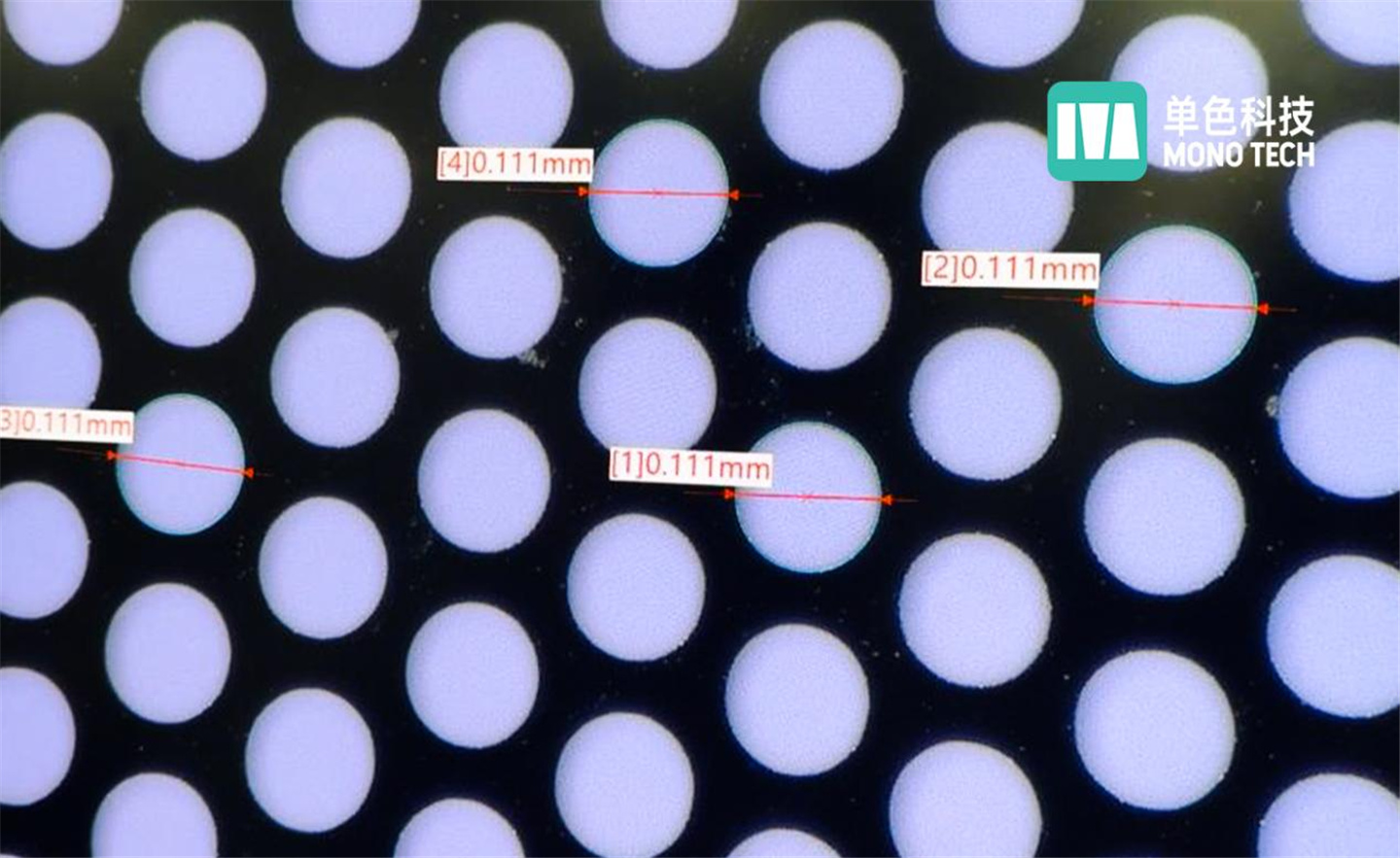

Mono case: Tolerance-free array drilling on molybdenum sheets
High-polish Etching

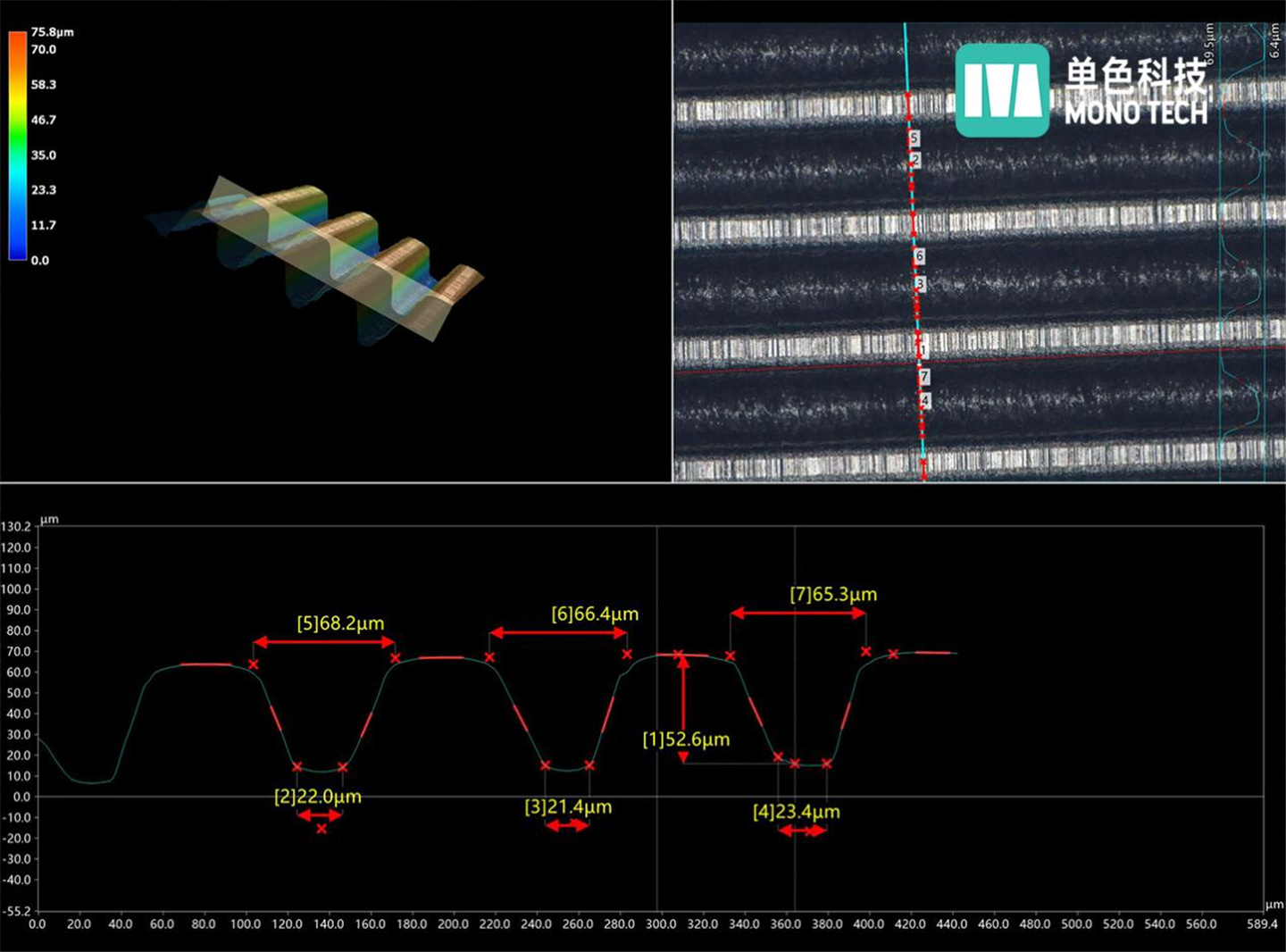

Carve micron-level or nanoscale grooves and textures onto tungsten and molybdenum surfaces. Our non-contact processing replicates intricate flat and curved designs without compromising base material performance.
Burr-free Cutting
Execute precision cutting of complex contours with narrow kerfs and ultra-smooth edges, free from thermal damage. This is vital for irregularly shaped tungsten-molybdenum alloy components in aerospace.

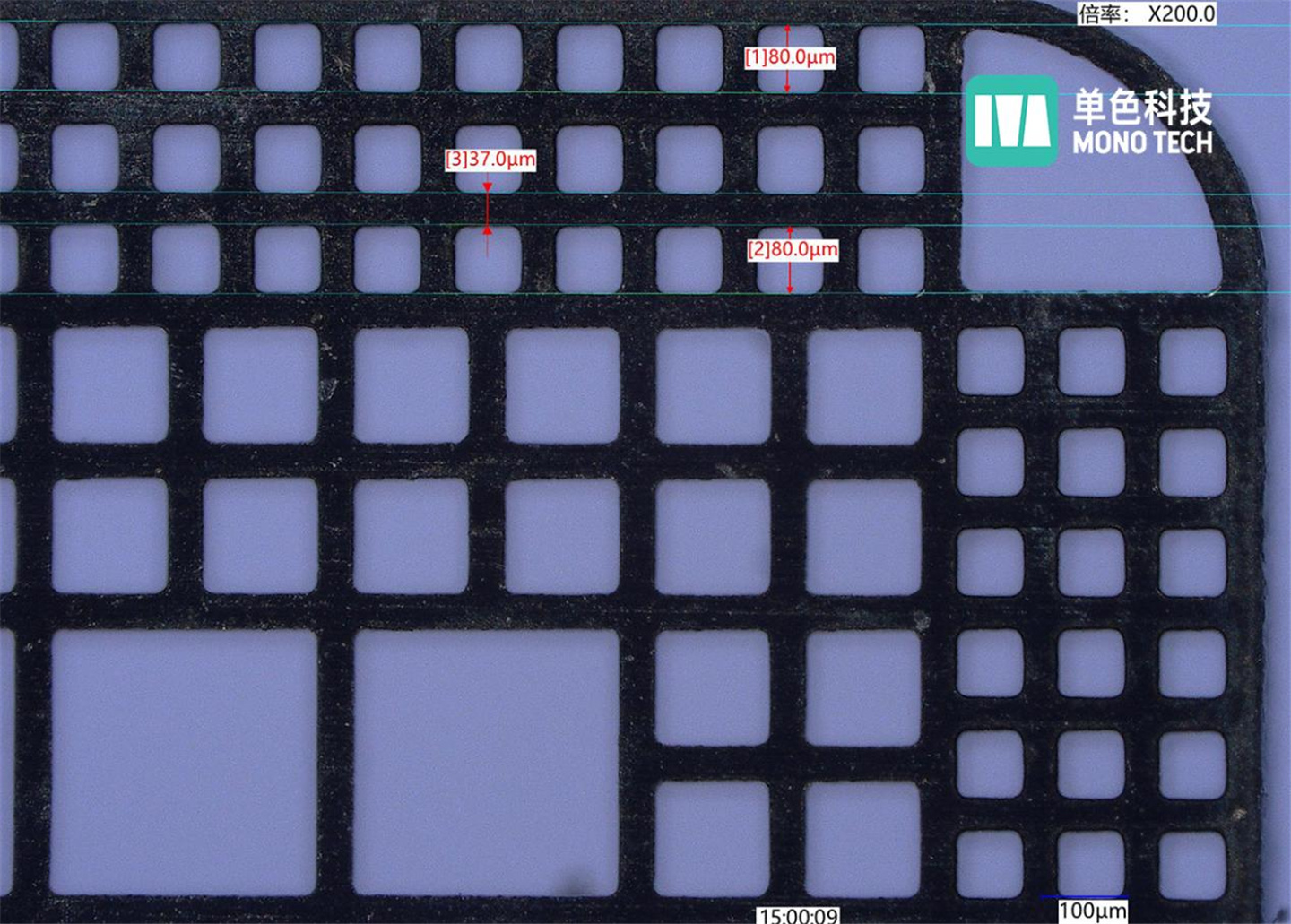

Mono case: Precision cutting of square holes on tungsten sheets
Why Choose MONO's Femtosecond Laser Solutions?
Leveraging deep technical expertise and extensive process experience, MONO provides a comprehensive closed-loop solution encompassing hardware, software, and process support for stable, consistent results.

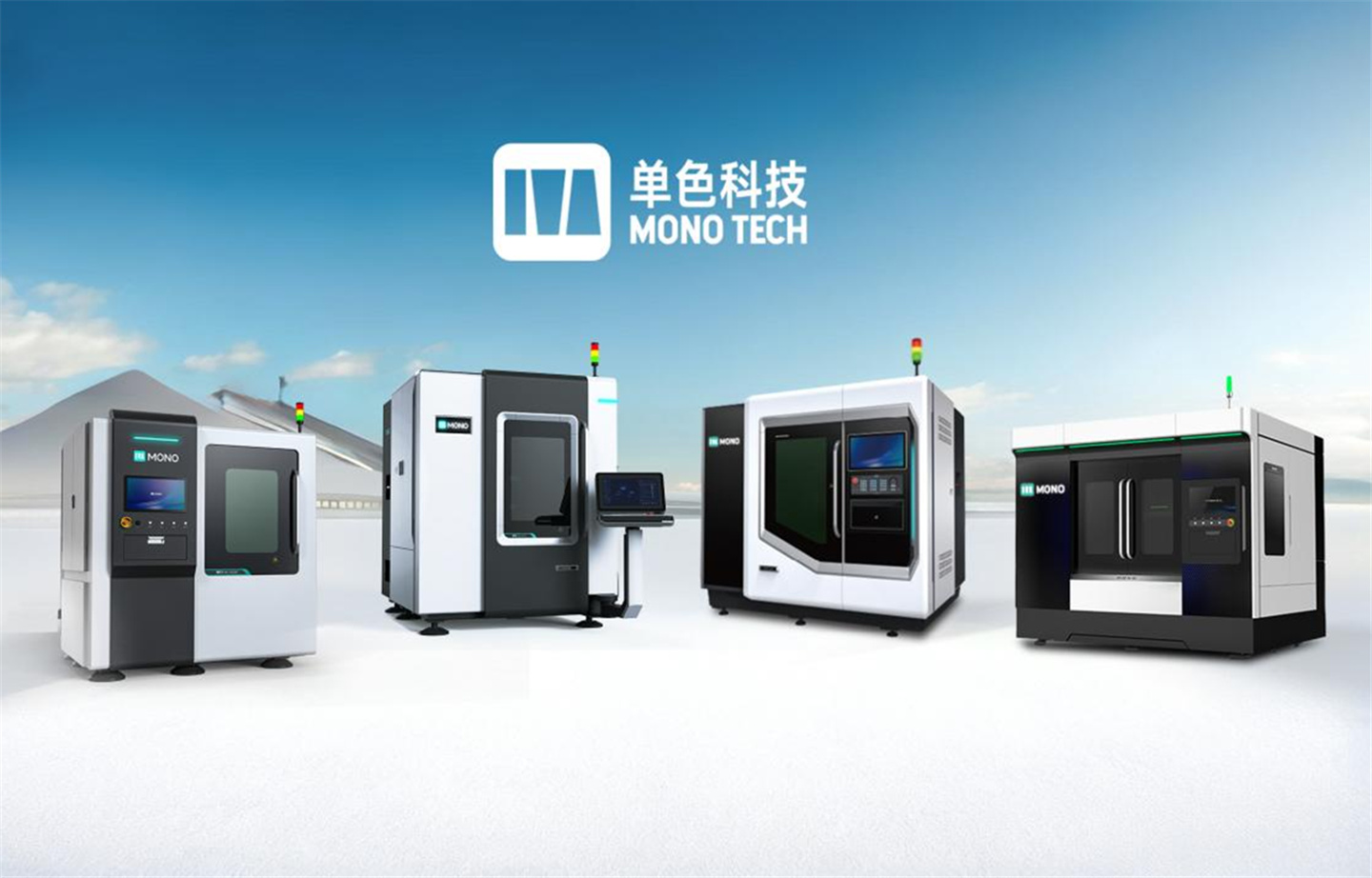

Advanced Equipment & Flexible Configuration: Our femtosecond laser systems feature adjustable parameters for diverse material thicknesses and hardness. Configurable multi-axis linkage systems support both small-batch prototyping and large-scale production.
Four Independently Developed Core Technologies:
Full-closed-loop Optical Vector Monitoring: Achieves submicron-level positional accuracy by compensating for energy fluctuations in milliseconds.
Nanoscale Laser Micro-nano Processing System: Achieves an ultra-precise machining line width of <200 nanometers.
Real-time Digital Twin System: Simulates the entire machining process virtually, optimizing trajectories and significantly shortening R&D cycles.
Spatial Attitude Adaptive Positioning: Enables ultra-high-precision processing on complex curved surfaces by dynamically tracking and adjusting focus.
Deep Process Experience & Quality Assurance:
Our 5,000m² facility, staffed by professional teams and equipped with advanced testing tools (SEM, white light interferometers), ensures rigorous inspection of all workpieces.
Extensive Tungsten & Molybdenum Case Studies
Years of experience across various tungsten and molybdenum structures allow us to rapidly identify optimal parameter combinations, accelerating your product innovation.
MONO is dedicated to femtosecond laser technology, empowering high-end manufacturing for industries including biomedical, semiconductor, aerospace, and new energy worldwide.
