The Micro-Machining Dilemma
Manufacturing industrial-grade nozzles presents two major engineering challenges:
- Complex Geometry at the Micron Scale: The fluid dynamics often require micrometer-sized holes with highly specific internal profiles (e.g., precise tapers or angled entry).
- Hard-to-Machine Materials: To withstand high-pressure and highly abrasive environments, modern nozzles are frequently manufactured from refractory alloys, tungsten, or technical ceramics.
The Failure of Traditional Machining: Conventional mechanical drilling and EDM (Electrical Discharge Machining) often result in rough internal walls and severe burrs. More critically, mechanical processes generate micro-swarf (debris) that becomes trapped inside the capillary. This trapped debris leads to catastrophic nozzle clogging, irregular flow rates, and drastically shortened component lifespans.
The MONO Solution: Femtosecond Laser + Helical Drilling
To overcome these limitations and guarantee stable fluid control, MONO utilizes femtosecond laser cold ablation combined with advanced helical drilling algorithms. By instantly vaporizing the material, we eliminate debris at the source, ensuring a pristine, zero-clogging orifice.
Limit-Breaking Micro-Drilling Capabilities:
- Custom Geometries: Effortless machining of vertical holes, angled orifices, precisely controlled tapers, and custom irregular profiles.
- High Aspect Ratios: Achieving deep hole drilling up to 10:1.
- Processing Range: Minimum hole diameters starting from ≥ 20 μm.

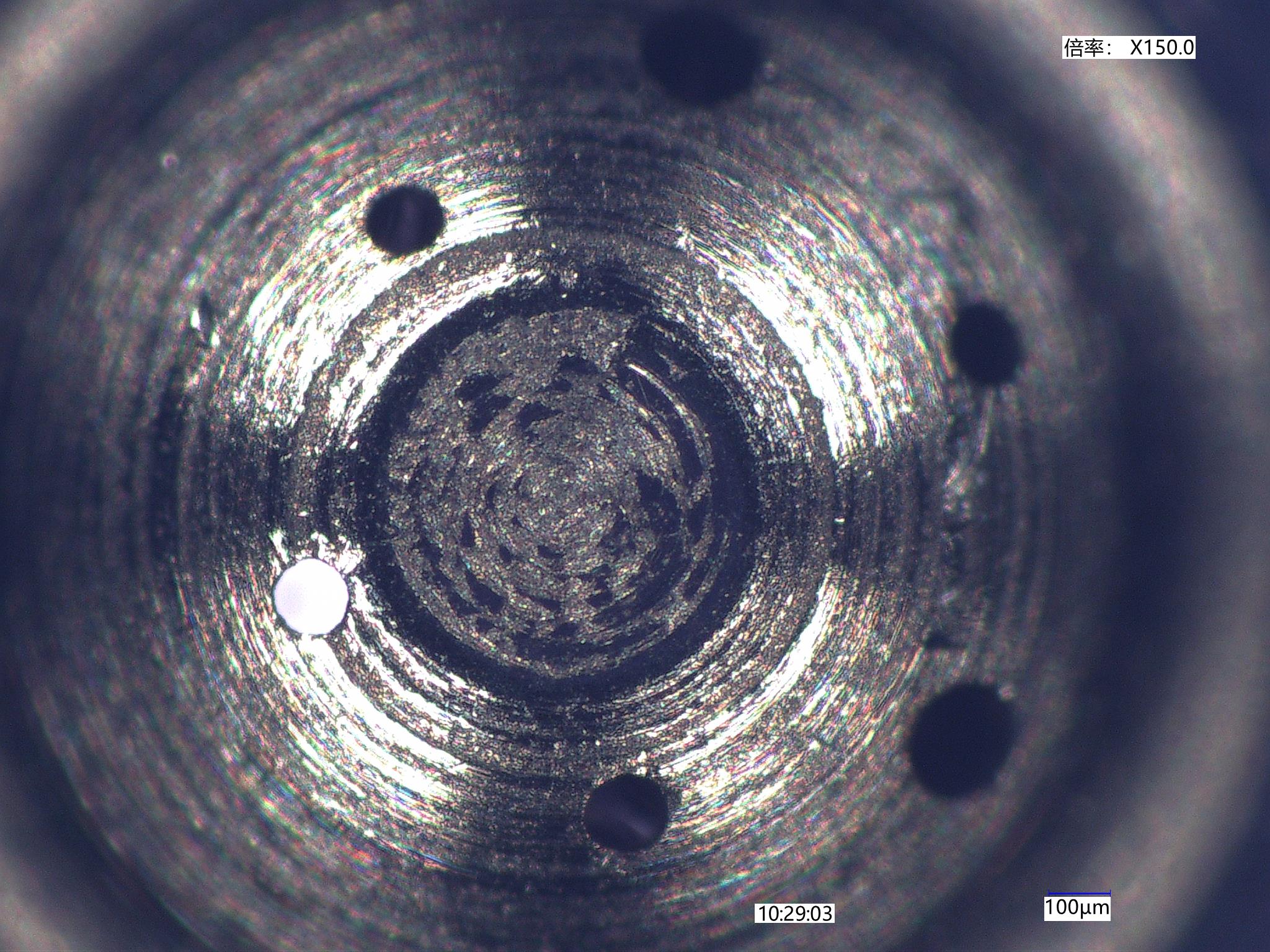

- Ultra-High Roundness: Delivering perfect circularity, verifiable under high-magnification microscopy.
- Tight Tolerances: Maintaining strict diameter accuracy within ±2 μm.
- Pristine Surface Finish: Burr-free, zero Heat-Affected Zone (HAZ), completely eliminating the need for chemical post-processing.
Engineering Hack: Balancing Precision and Production Throughput
Femtosecond lasers achieve unparalleled quality by removing material layer-by-layer (ablation). However, for exceptionally thick nozzles, this process can impact overall manufacturing efficiency.
Our Hybrid Machining Strategy: For nozzles with depths exceeding 2mm, we highly recommend a hybrid approach. Manufacturers can use traditional CNC machining to pre-drill a counterbore, rapidly removing the bulk material. We then deploy the femtosecond laser to precisely form the critical micro-orifice at the fluid exit. This strategy guarantees world-class precision while significantly reducing cycle times.
What's Next?
In our upcoming technical series, we will dive deeper into specific industrial applications, showcasing MONO's extreme micro-drilling capabilities for fuel injector nozzles, injection molding nozzles, and synthetic fiber spinnerets. Stay tuned!
