Ultrafast Laser Micro Drilling: Precision Machining for Any Material Under 2mm

Table of Contents

• 1. The Bottleneck in Micro Drilling Thin Materials
• 2. Advanced Ultrafast Drilling Processes: Helical, Trepanning & Perforating
• 3. The Polymer Processing Dilemma: Achieving Cold Ablation
• 4. Breaking the 20μm Limit: High-Density Metal Hole Arrays
• 5. MONO's Proven Industrial Applications
  • 5.1 Medical Devices & Implants
  • 5.2 Flexible Consumer Electronics
  • 5.3 Functional Micro-molds & 3D Structures
• 6. Conclusion

The Challenge in Micro Drilling Thin Materials

Manufacturing ultra-precise micro-holes in materials under 2mm thick is a critical requirement across medical, consumer electronics, and semiconductor industries. However, engineers constantly face a dilemma: how to achieve extreme precision without sacrificing production efficiency, and how to process sensitive materials without destroying them.

Whether dealing with heat-sensitive polymers that warp and carbonize, or metal foils that require tens of thousands of 20μm holes, traditional methods like micro-stamping, chemical etching, and nanosecond lasers fall short. They leave burrs, heat-affected zones (HAZ), and recast layers.

Ultrafast laser micro drilling (femtosecond and picosecond lasers) shatters these limitations. By utilizing ultra-short pulses, it enables cold processing, allowing for minimum hole sizes down to 1μm in any material, with zero thermal damage.

Advanced Ultrafast Drilling Processes: Helical, Trepanning & Perforating

MONO utilizes sophisticated beam delivery systems to execute various high-power perforating and drilling strategies, perfectly tailored for materials under 2mm thick:

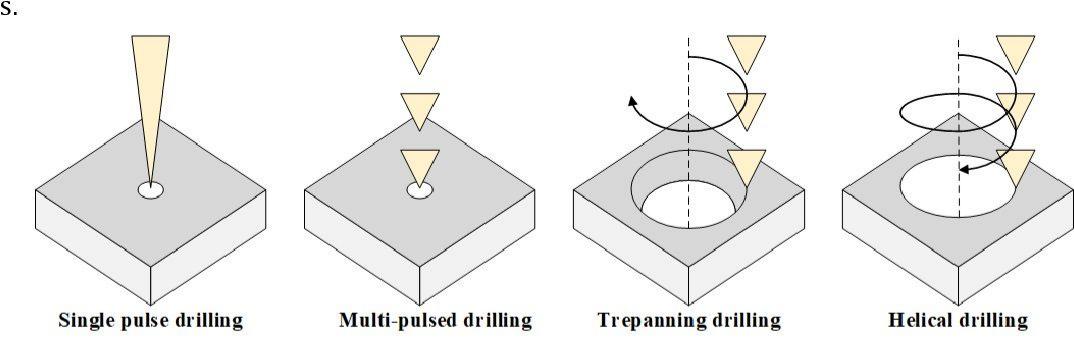

• Percussion Drilling (Perforating): High-power, rapid pulses fire repeatedly at a single spot. Ideal for drilling high-density arrays at extreme speeds.
• Trepanning: The laser beam moves in a circular orbit to cut out a larger hole. Excellent for maintaining perfect roundness and smooth edges in larger micro-holes.
• Helical Drilling: The laser spirals downward into the material. This advanced technique allows for precise control over the hole's taper (e.g., creating trumpet-shaped or perfectly cylindrical holes) while achieving high aspect ratios.

The Polymer Processing Dilemma: Achieving Cold Ablation

Polymers (plastics, macromolecules) are lightweight, corrosion-resistant, and highly insulative, making them indispensable for medical microfluidics and flexible electronics. However, they are notoriously difficult to machine. Their thermal expansion coefficient is ten times that of metals, and they have low melting points.

Because polymers lack free electrons to conduct heat away quickly, traditional nanosecond lasers cause severe thermal accumulation, leading to melting, warping, carbonization, and geometric errors.

Femtosecond lasers (1fs = 10⁻¹⁵s) deliver energy so rapidly that the material vaporizes before heat can transfer to the surrounding lattice. This "cold ablation" ensures zero HAZ, immaculate edges, and no degradation of the polymer's chemical or mechanical properties.

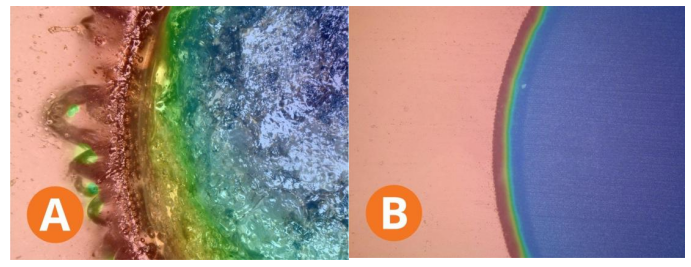

Comparison: Polycarbonate blind holes. (A) Nanosecond laser causes visible melting and thermal damage. (B) Femtosecond laser leaves a perfectly flat surface with negligible HAZ.

Breaking the 20μm Limit: High-Density Metal Hole Arrays

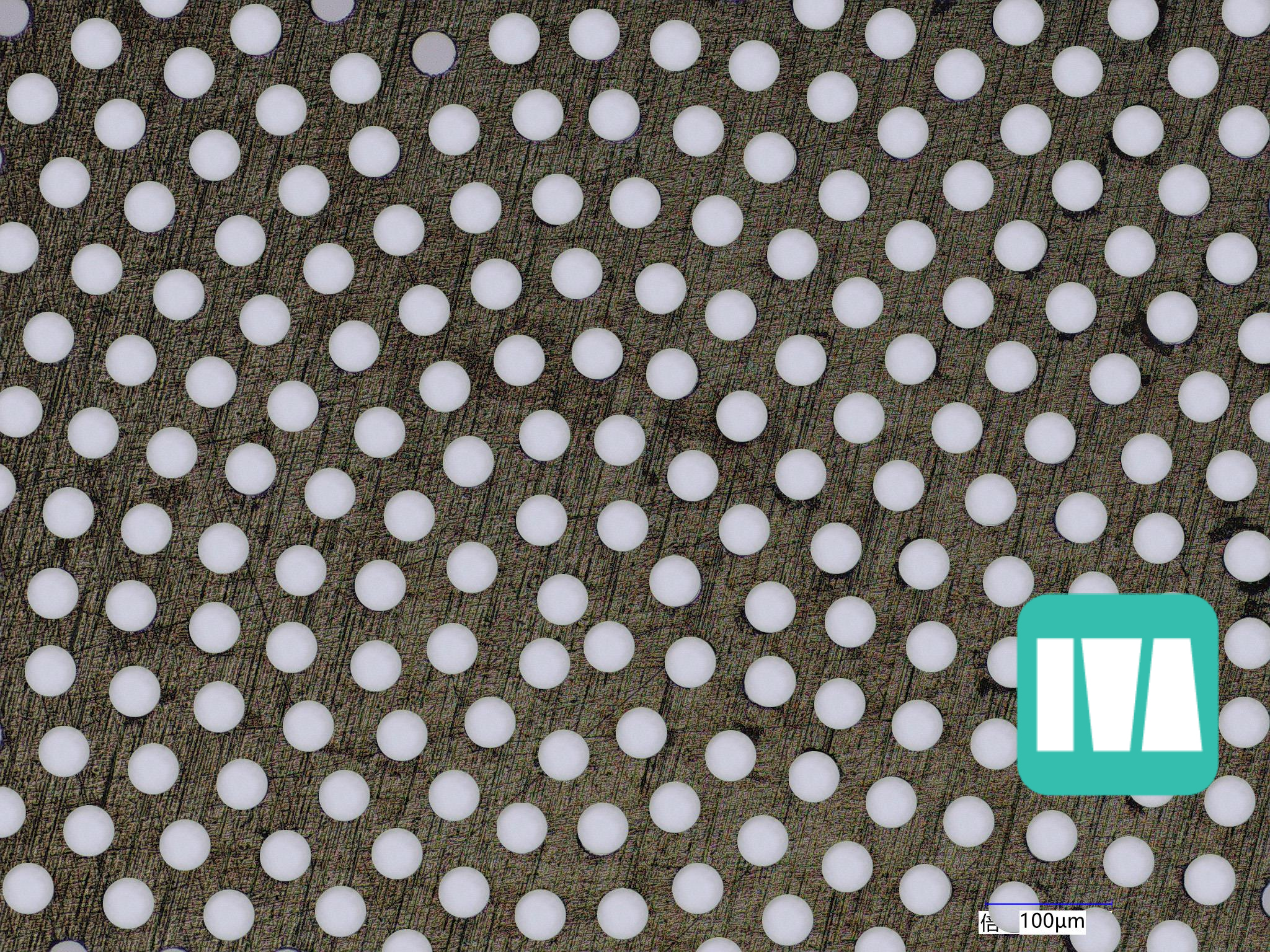

For applications like nebulizer meshes, drug delivery devices, and precision filters, engineers face a brutal challenge: drilling thousands of high-density 20μm micro-holes in metal foils (like stainless steel, titanium, or tungsten) with zero burrs and high throughput.

• Chemical Etching: Cannot process thick materials. If holes are too dense, the chemicals over-etch and destroy the structural integrity.
• Micro-stamping: Mechanical pins snap instantly at 20μm sizes, and the physical impact inevitably leaves burrs.
• EDM (Electrical Discharge Machining): Too slow for mass arrays and leaves fatal recast layers and micro-cracks.

The Femtosecond Breakthrough: Using multi-beam parallel processing, ultrafast lasers can drill hundreds of micro-holes per second. By vaporizing the metal instantly, the process achieves:

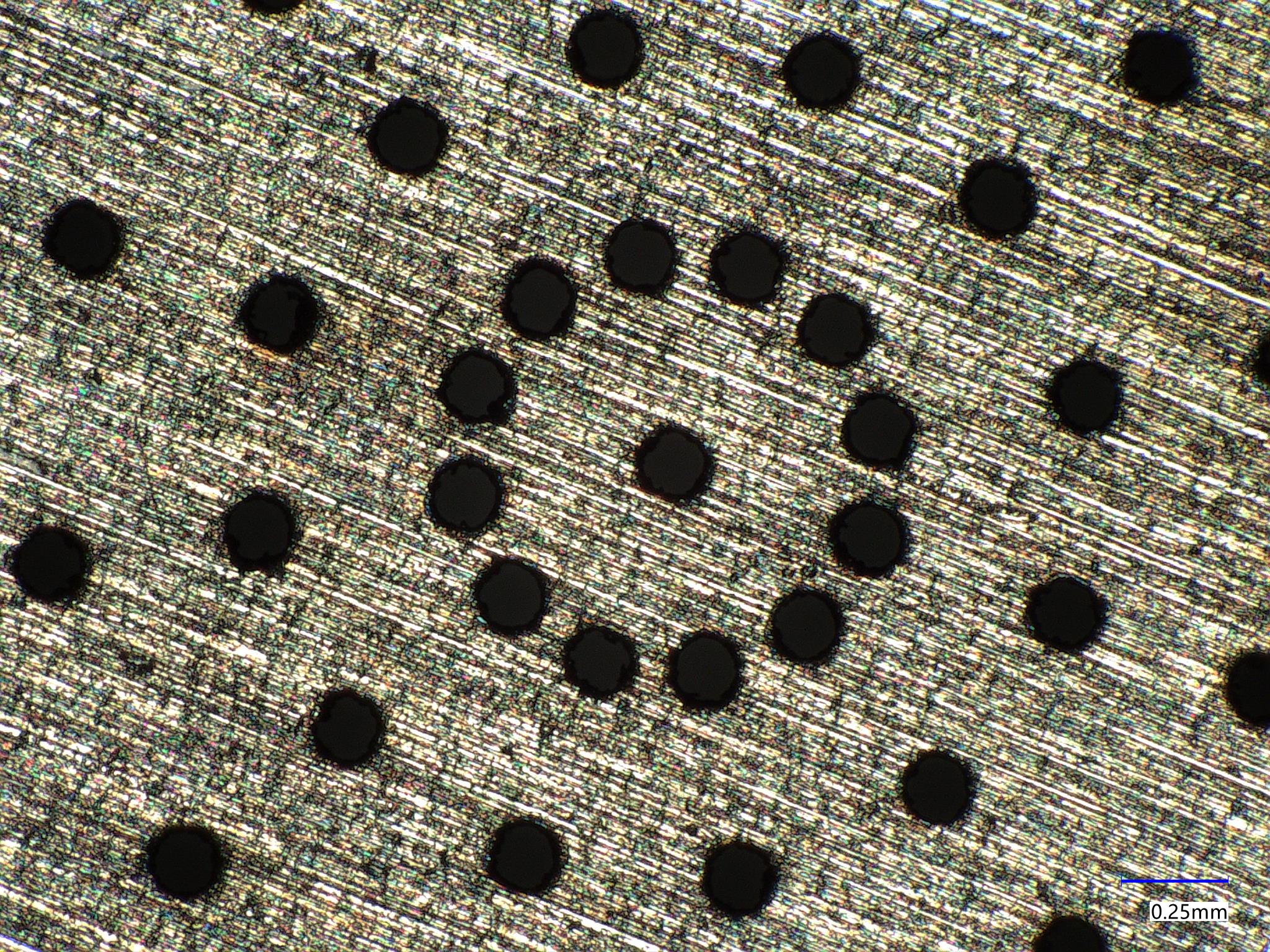

• Extreme Precision: Minimum hole diameter down to 2μm with an accuracy of ±1μm.
• High Aspect Ratio: Up to 10:1, allowing thicker foils for stronger filter meshes.
• Pristine Quality: Surface roughness Ra ≤ 2μm, razor-sharp edges, no recast layers, eliminating the need for post-processing.
• Customizable Geometries: Easily drill circular, square, or complex irregular shapes with precisely controlled tapers.

MONO's Proven Industrial Applications

We provide micron-level, high-quality ultrafast laser micro drilling, cutting, and etching services, alongside customized mass-production equipment.

5.1 Medical Devices & Implants

Biocompatibility and precision are non-negotiable in medical manufacturing. Danse Technology's solutions ensure structural integrity without thermal damage.

• PI Medical Catheter Drilling: Drilling thin-walled Polyimide (PI) and PEEK tubes. Result: Invisible HAZ, no damage to the opposite wall, and perfectly smooth inner walls with zero melt residue.

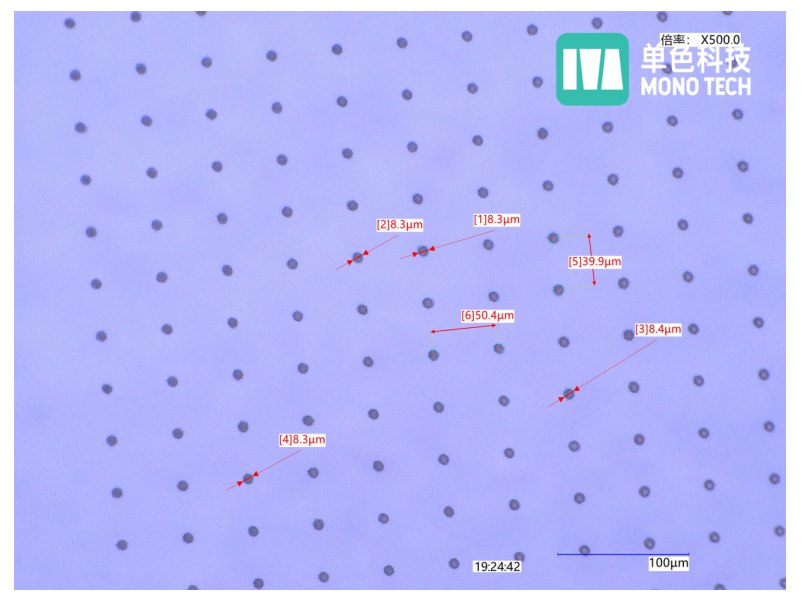

• PDMS Cell Filtration Membranes: High-density arrays of 8.3μm (±1μm) holes. Result: Perfectly uniform distribution with zero debris contamination, crucial for cell filtering.

5.2 Flexible Consumer Electronics

As devices become smaller and more flexible, femtosecond lasers are pushing the boundaries of miniaturization.

• Glass-Cloth PCB Cutting: Supports complex inner-fillet designs with burr-free, carbonization-free edges, eliminating post-polishing.
• ePTFE Flexible Conduits: Achieves a kerf width of 0.046mm (±1μm) with no frayed fibers, preserving the material's flexibility.

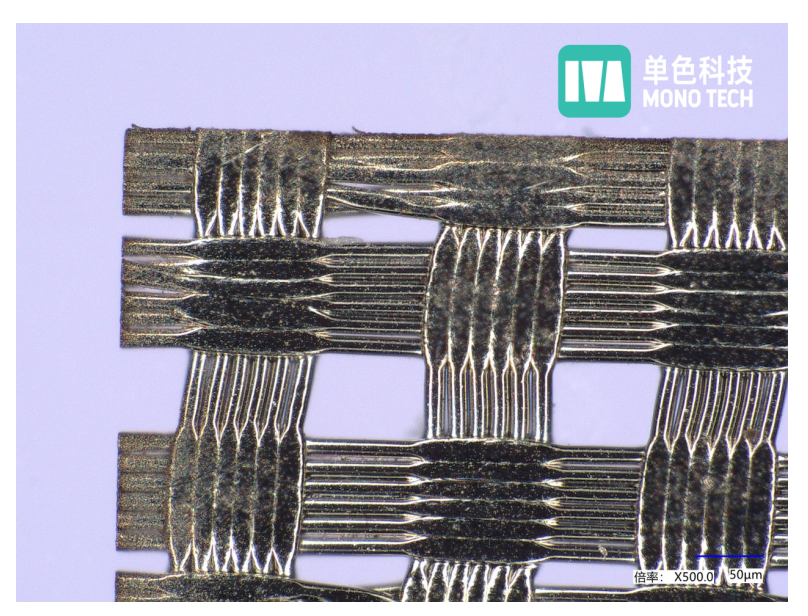

• Conductive Cloth Cutting: Cuts composite fibers and metal coatings cleanly without damaging the conductive layer, ensuring stable electrical performance for wearables.

5.3 Functional Micro-molds & 3D Structures

Ultrafast lasers can engrave micro-nano scale textures to create functional surfaces, enabling high-repeatability mass production via injection molding.

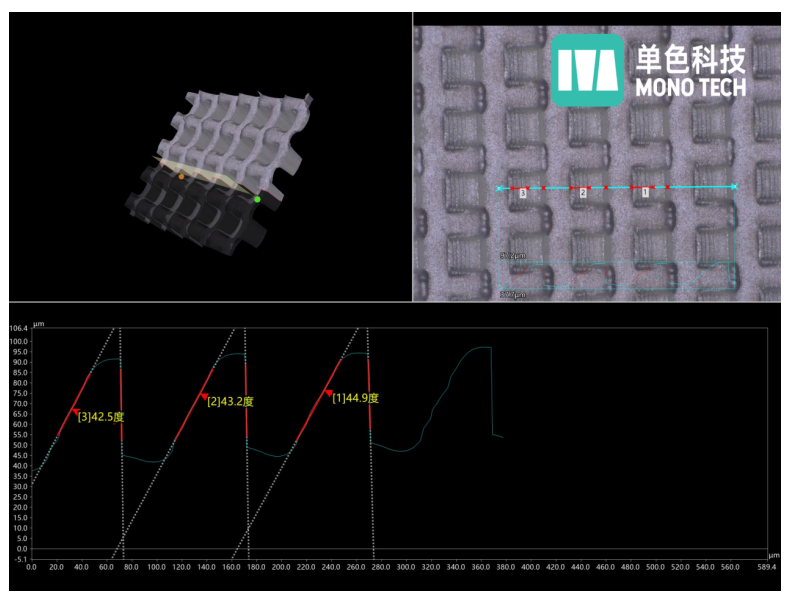

• PDMS Microneedle Arrays: Directly etches complex 3D structures (including adjustable taper tips) with ±1μm precision and >99% height consistency. Ideal for painless blood glucose monitoring patches.
• Polyimide Bump Structures: Creates 26μm (±2μm) high bumps with a surface roughness Ra ≤ 0.2μm, perfect for flexible micro-sensors.

Conclusion

Ultrafast laser micro drilling—utilizing advanced trepanning, helical, and perforating techniques—has fundamentally solved the precision-efficiency paradox for materials under 2mm. By leveraging true cold processing, MONO eliminates thermal damage, expands the boundaries of polymer micromachining, and breaks through the limits of high-density metal array manufacturing.

Stop settling for burrs, warped materials, and slow production times. Transform your innovative designs into reality with MONO’s industrial femtosecond laser solutions.
