The processing fundamentals: thermal melting vs. ultrafast cold ablation
Fiber lasers and femtosecond lasers remove material in fundamentally different ways. That difference becomes especially important in medical micromachining, where edge integrity, fatigue life, and post-processing burden directly affect both yield and downstream performance.
Fiber laser cutting: efficient, but thermal by nature
Fiber laser cutting in the microsecond or nanosecond range is a typical thermal process. Material is melted by a concentrated laser beam, and assist gas is then used to remove molten material from the cut zone. This approach can be efficient and cost-effective for thicker parts, but it also introduces a heat-affected zone, recast, and thermal loading at the edge.
Femtosecond laser cutting: cleaner removal with far lower thermal side effects
Femtosecond lasers use ultrashort pulses on the order of 10-15 seconds. Energy is delivered so quickly that material is removed before significant heat can diffuse into the surrounding area. In practical terms, this makes femtosecond laser processing much more suitable for medical components that require sharp edges, low recast, and stable mechanical properties after cutting.
Three physical thresholds where process choice starts to matter
In medical device micromachining, the difference between fiber and femtosecond laser processing becomes much more obvious once the part crosses certain precision thresholds.
1. Feature size below 50 μm

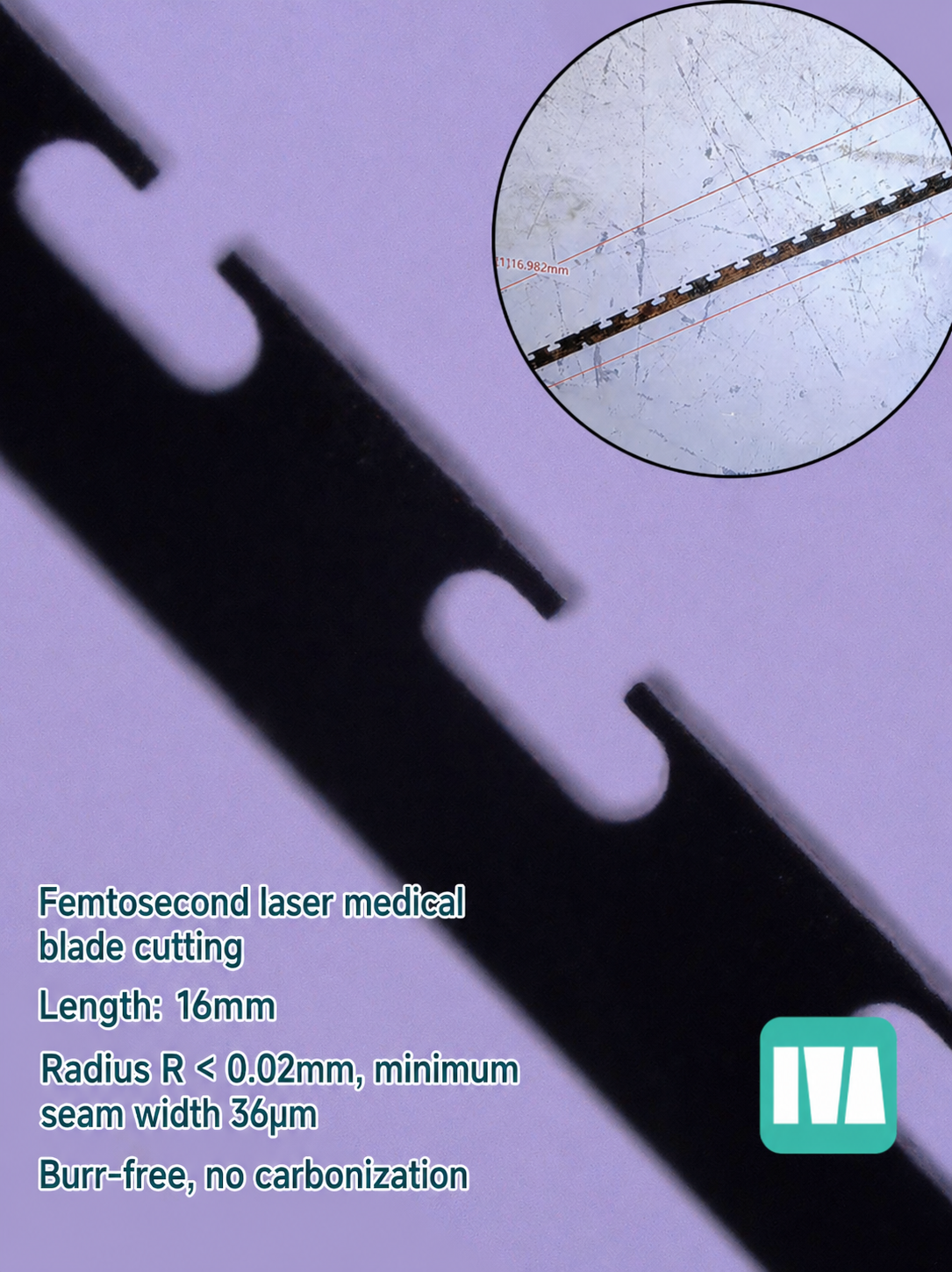

For minimally invasive micro blades, the finest line width can be only 30–40 μm. At this scale, thermal accumulation from fiber laser cutting can cause adjacent micro features to partially melt together, leaving slag, edge rounding, and loss of sharpness. Femtosecond laser cutting is better suited to these micro-scale contours because it can produce much finer kerfs with cleaner and sharper edge definition.
2. Tight internal R angles and customized curved geometries
Many interventional parts require very small inner radii to meet fit, bite, or motion requirements. In narrow corners, fiber laser processing tends to accumulate heat more aggressively, which can create a brittle recast layer and increase the risk of stress-related cracking during implantation or use. Femtosecond laser processing is much better suited to restoring the intended design geometry while preserving the original mechanical toughness of the material.
3. Tolerances tighter than ±10 μm
When fiber laser cutting leaves visible dross or recast at the edge, chemical cleaning or electropolishing is often required. Those extra steps do not simply remove burrs—they also remove material. For precision blade profiles and small medical features, that makes final tolerance control much harder. Femtosecond laser cutting can significantly reduce the burden of post-processing, making it easier to hold final dimensional tolerances in the ±3 μm to ±5 μm range on suitable parts.
Fiber laser vs. femtosecond laser comparison for precision medical cutting
| Metric | Fiber Laser | Femtosecond Laser |
|---|---|---|
| Processing mechanism | Thermal melting and gas-assisted material removal | Ultrafast, low-thermal material removal |
| Heat-affected zone | Obvious on thin and delicate features | Very small |
| Typical edge condition | Dross, burrs, recast, often needs extra cleaning | Cleaner edge, lower recast, reduced post-processing |
| Dimensional capability | Typically suitable for looser tolerances | Better suited to ±3 μm to ±5 μm-class results on suitable parts |
| Yield on micro features | Can drop sharply on very small or thin-wall parts | Better suited to high-value micro-scale geometries |
| Best-fit application | Thicker tubes, conventional parts, cost-driven cutting | Thin-wall tubes, precision blades, heat-sensitive alloys, high-end micromachining |
How to choose the right process for medical device parts
When fiber laser cutting still makes sense
Fiber laser cutting remains a strong option for high-volume cutting of standard stainless steel tubes or other less demanding parts, especially when wall thickness is higher and tolerance expectations remain above the ±20 μm level. In these cases, processing speed and cost may outweigh the disadvantages of a thermally driven cut edge.
When femtosecond laser processing becomes the better choice
Femtosecond laser processing becomes much more attractive when the part uses heat-sensitive materials such as Nitinol or cobalt-chromium, when line width falls below 50 μm, when the edge must remain sharp and crack-free, or when reducing chemical post-processing is important for improving total yield.
Although femtosecond systems require a higher initial investment, the total part cost can become more competitive once secondary cleaning, electropolishing burden, scrap risk, and yield loss are taken into account. In other words, the choice is often not about machine price alone, but about total manufacturing economics for a precision medical component.
Why this matters for medical device manufacturers
In interventional and minimally invasive devices, cut quality is directly tied to function. A micro blade that looks acceptable under low magnification may still have edge defects, brittle zones, or dimensional drift that reduce performance after cleaning or during use. As device geometries continue to shrink and wall thickness drops below 0.1 mm, process selection becomes more critical—not less.
For manufacturers developing high-value medical components, femtosecond laser processing offers a more stable route to cleaner edges, finer features, and a lower-risk path from prototype validation to production.
Explore medical device micromachining with MONO
If you are evaluating cutting methods for thin-wall tubes, precision minimally invasive blades, or other demanding medical components, MONO can support your project with process discussion, feasibility evaluation, and femtosecond laser solutions for medical micromachining.
FAQ
Why is femtosecond laser cutting better for micro blades?
Because minimally invasive blade geometries often include very fine teeth, narrow kerfs, and tight tolerances. Femtosecond laser processing helps reduce thermal distortion and edge damage, making it better suited to these delicate structures.
Is fiber laser cutting still useful for medical parts?
Yes. Fiber laser cutting remains practical for thicker or less demanding components where productivity and cost matter more than ultra-clean edge quality.
Why does post-processing matter so much in medical micromachining?
Because secondary cleaning or electropolishing can remove additional material from already tiny features. On micro blades and thin-wall parts, that extra material removal can become a tolerance problem.
