Polymer Process
Polymer process
Polymers are core materials in medical, consumer electronics, precision instruments, and other fields—they’re light, corrosion-resistant, and have great insulation. polymers are highly heat-sensitive: traditional machining often causes heat-affected zones, warping, and carbonization. We use femtosecond laser tool to achieve unprecedented machining precision and surface quality.
Femtosecond laser’s thermal damage-free processing ensures the chemical stability and structural integrity of polymers, perfectly matching the high standards of medical devices:

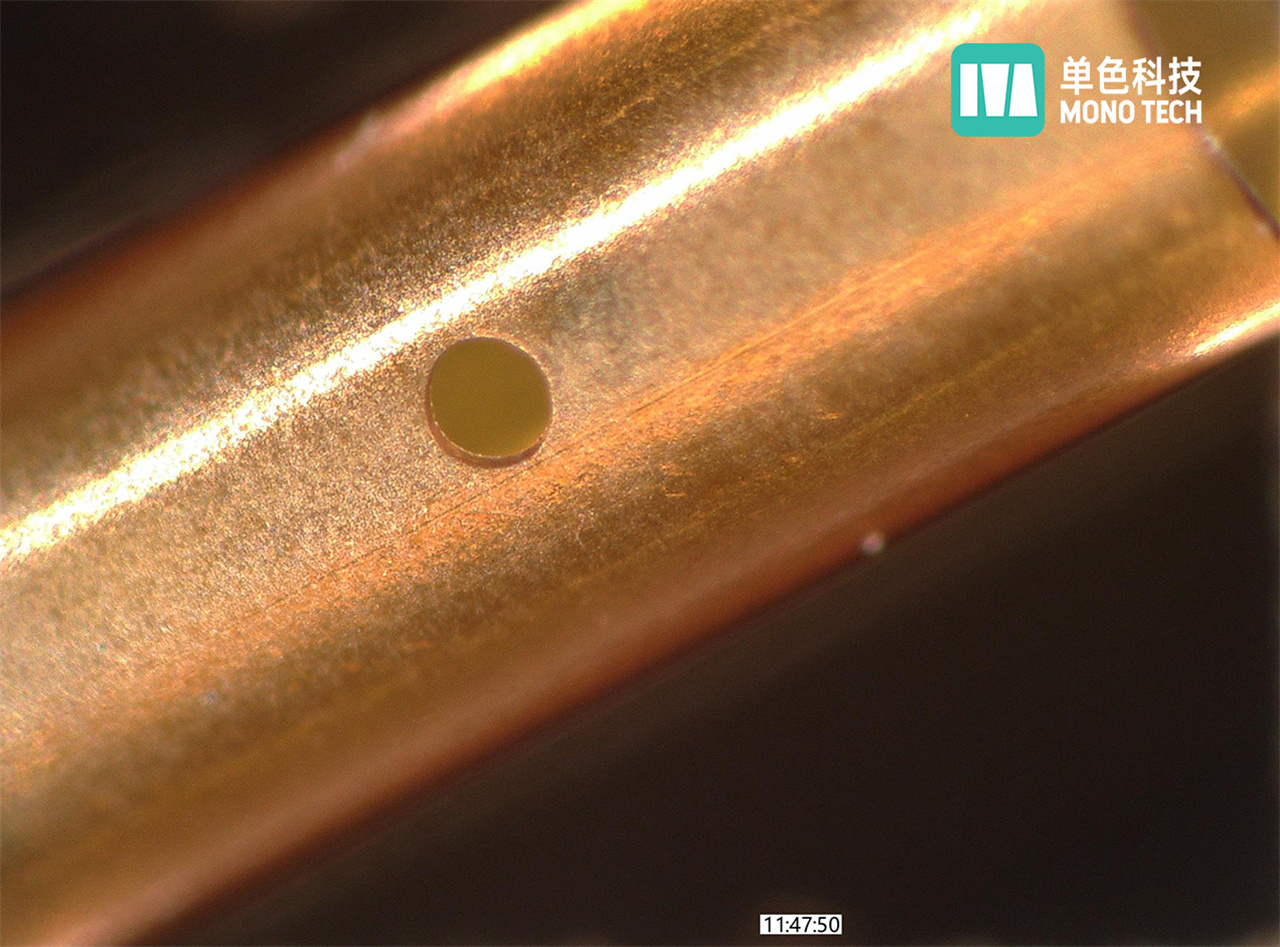

PI Medical Catheter Drilling: Near-invisible HAZ, no opposite-wall damage, smooth hole walls, compliant with biocompatibility standards;

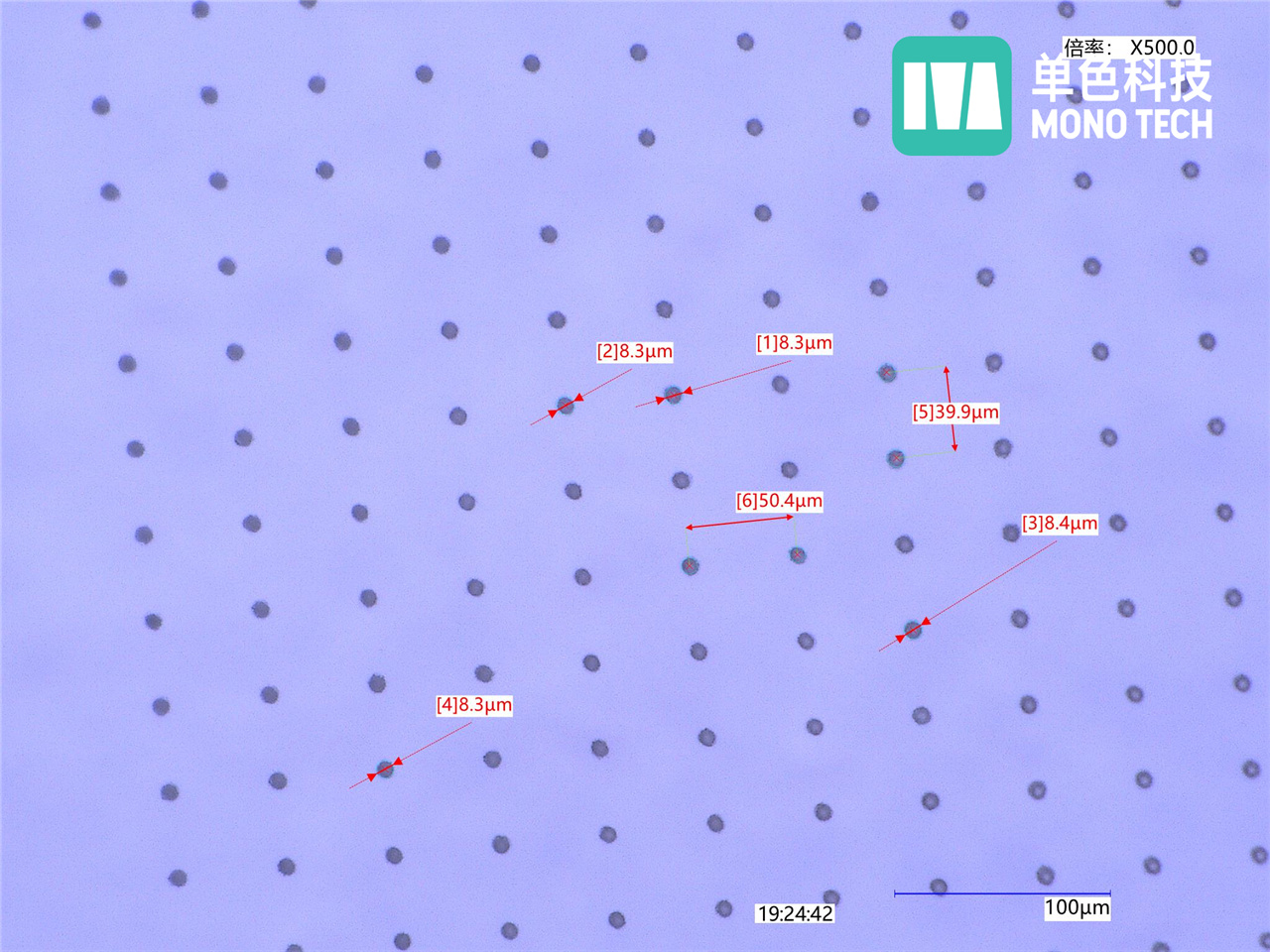

PDMS Cell Filter Membrane Hole Array Machining: Hole diameter 8.3μm±1μm, uniform hole distribution without deviation, no debris contamination—meets the core needs of cell filtration.
PDMS Cell Filter Hole Array Machining
PI Medical Catheter Drilling
0102
Conductive Fabric Contour Cutting
ePTFE Cutting

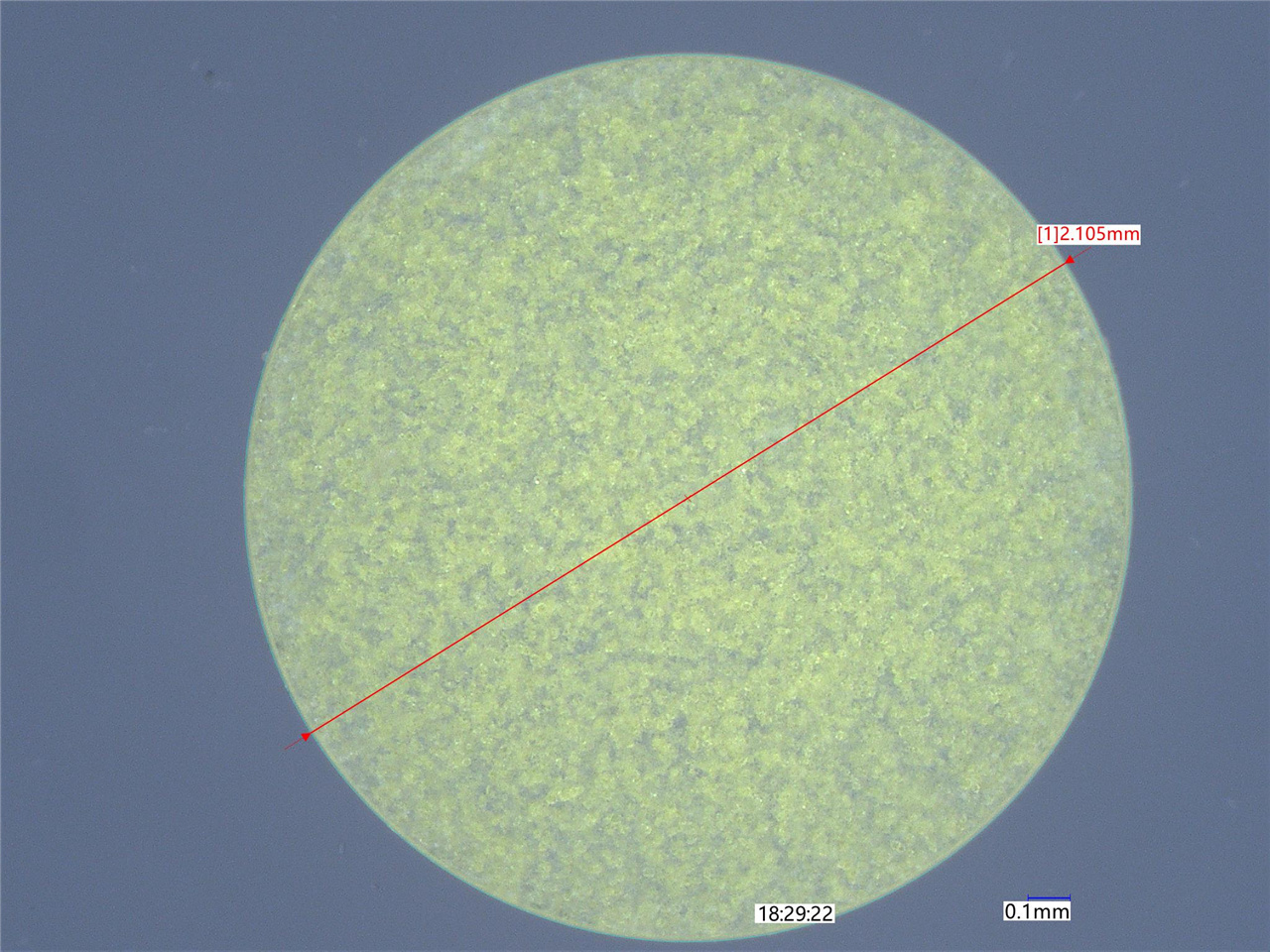

LED Phosphor Sheet Cutting
PCB Cutting
01020304
Supports smaller, thinner, more flexible trend of consumer electronics with high-precision machining:

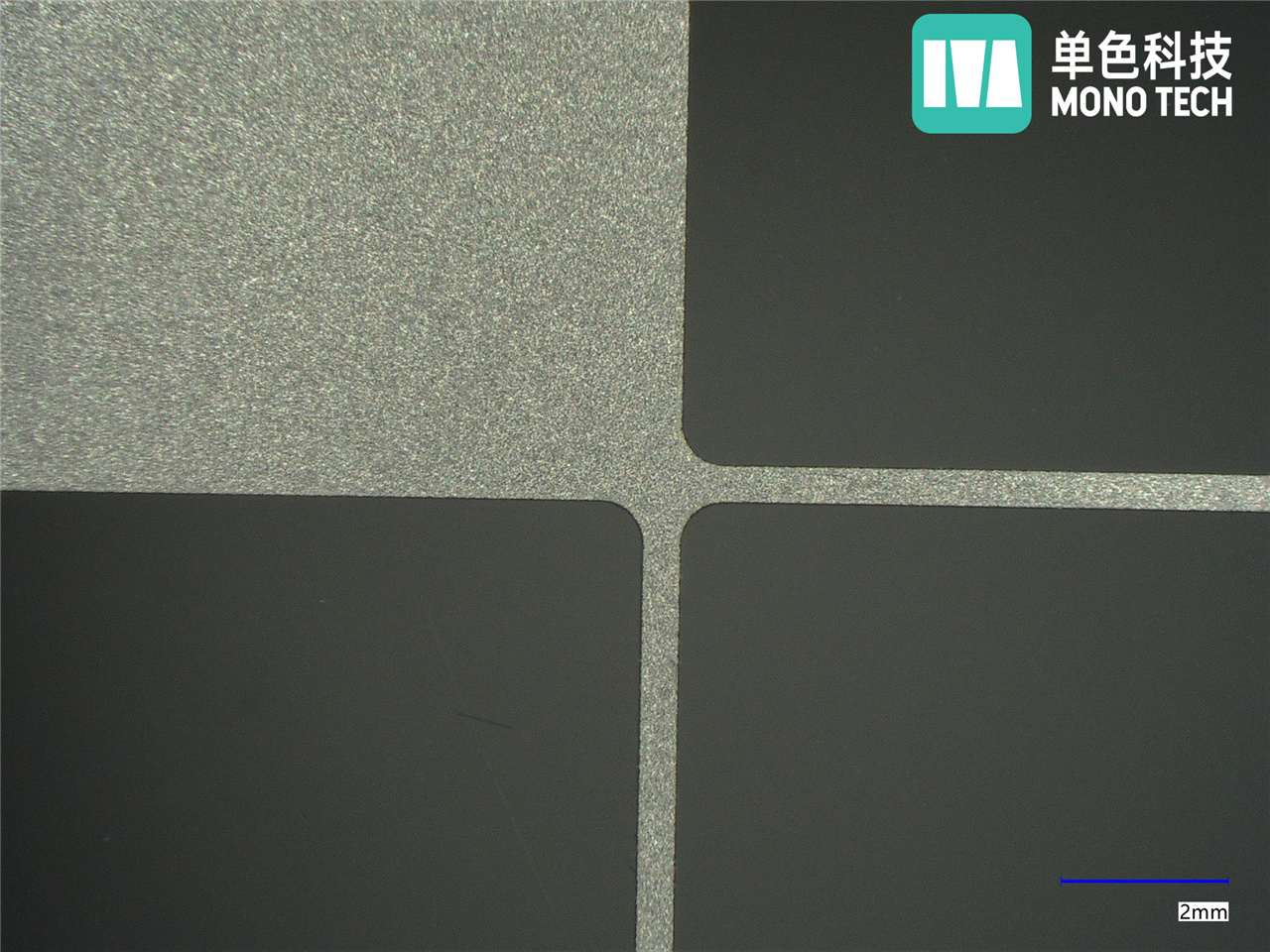

Glass Cloth Substrate PCB Cutting: Custom inner fillets, high-gloss cutting surfaces, no post-processing grinding—adapts to high-integration design;
ePTFE Flexible Component Cutting: Kerf width 0.046mm±1μm, no fiber fraying at edges, retains the material’s original flexibility;

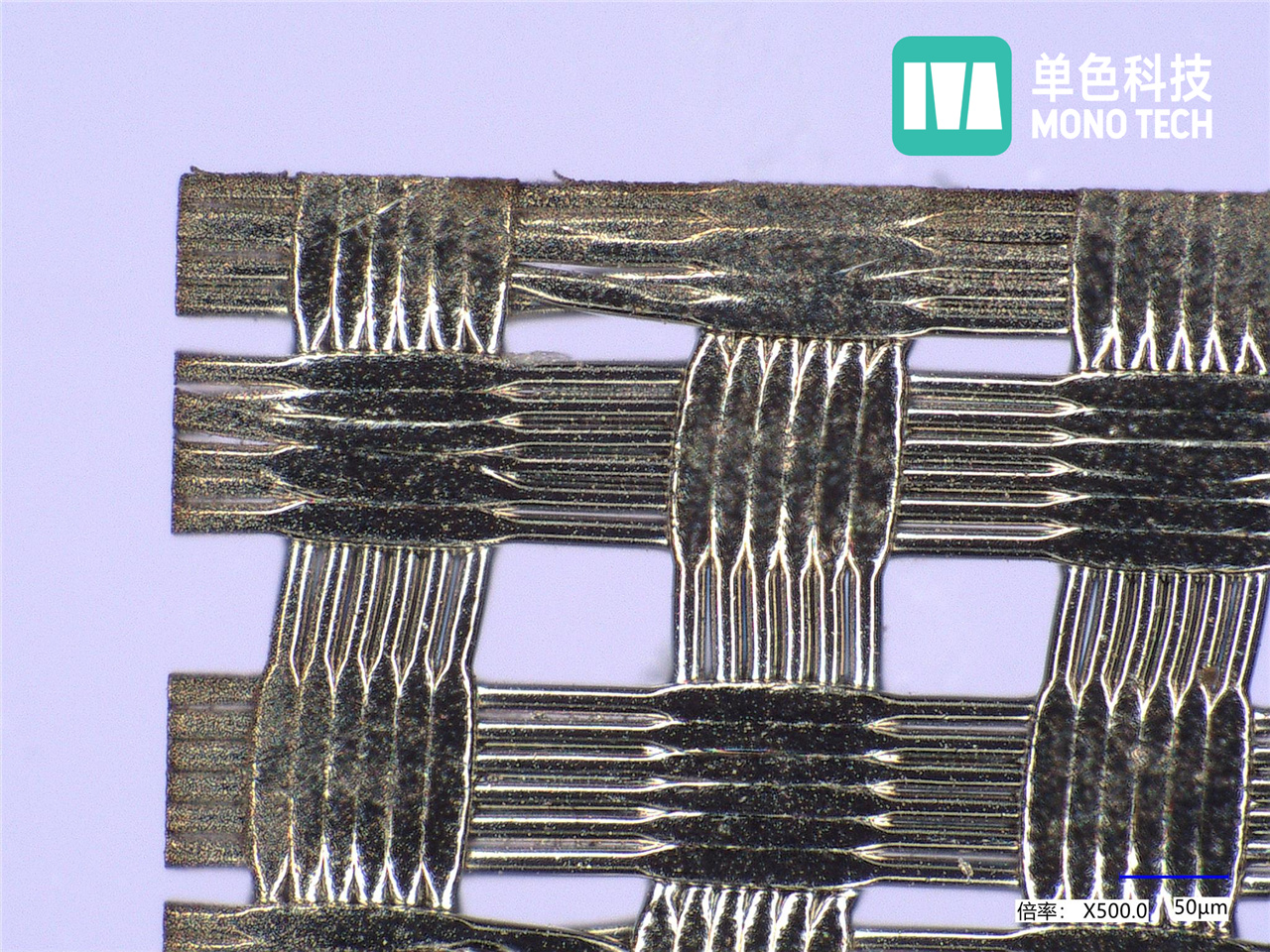

Conductive Fabric Contour Cutting: Burr-free and carbonization-free, no damage to the conductive layer—ensures stable performance of flexible touch and wearable devices.
Micro-nano texturing endows materials with new functions, suitable for mass production scenarios such as injection molding:

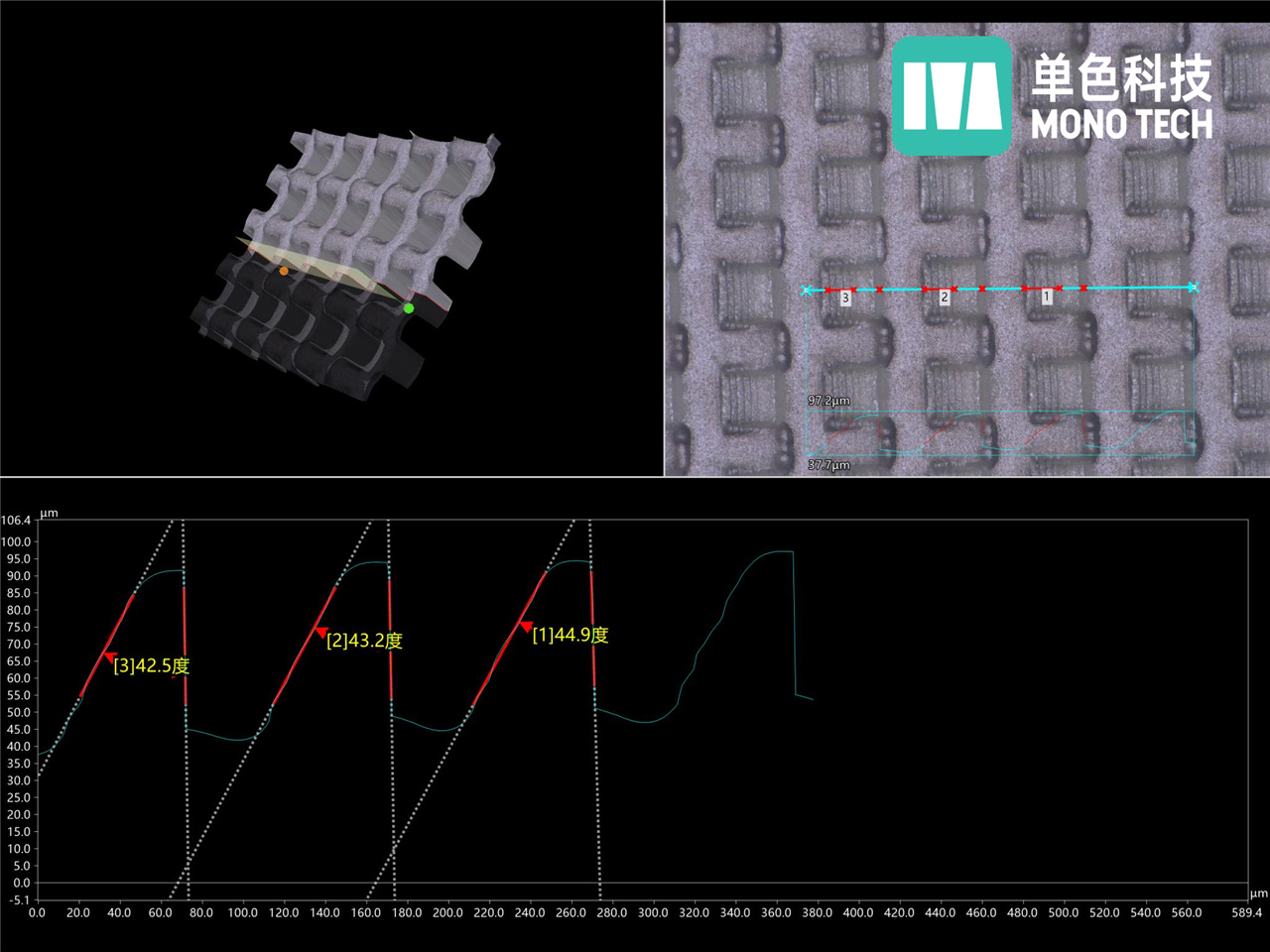

PDMS Microneedle Array Etching: 3D microstructures (needle body + adjustable taper tip), dimensional accuracy ±1μm, array consistency >99%—meets medical scenarios like blood glucose microneedle patches;

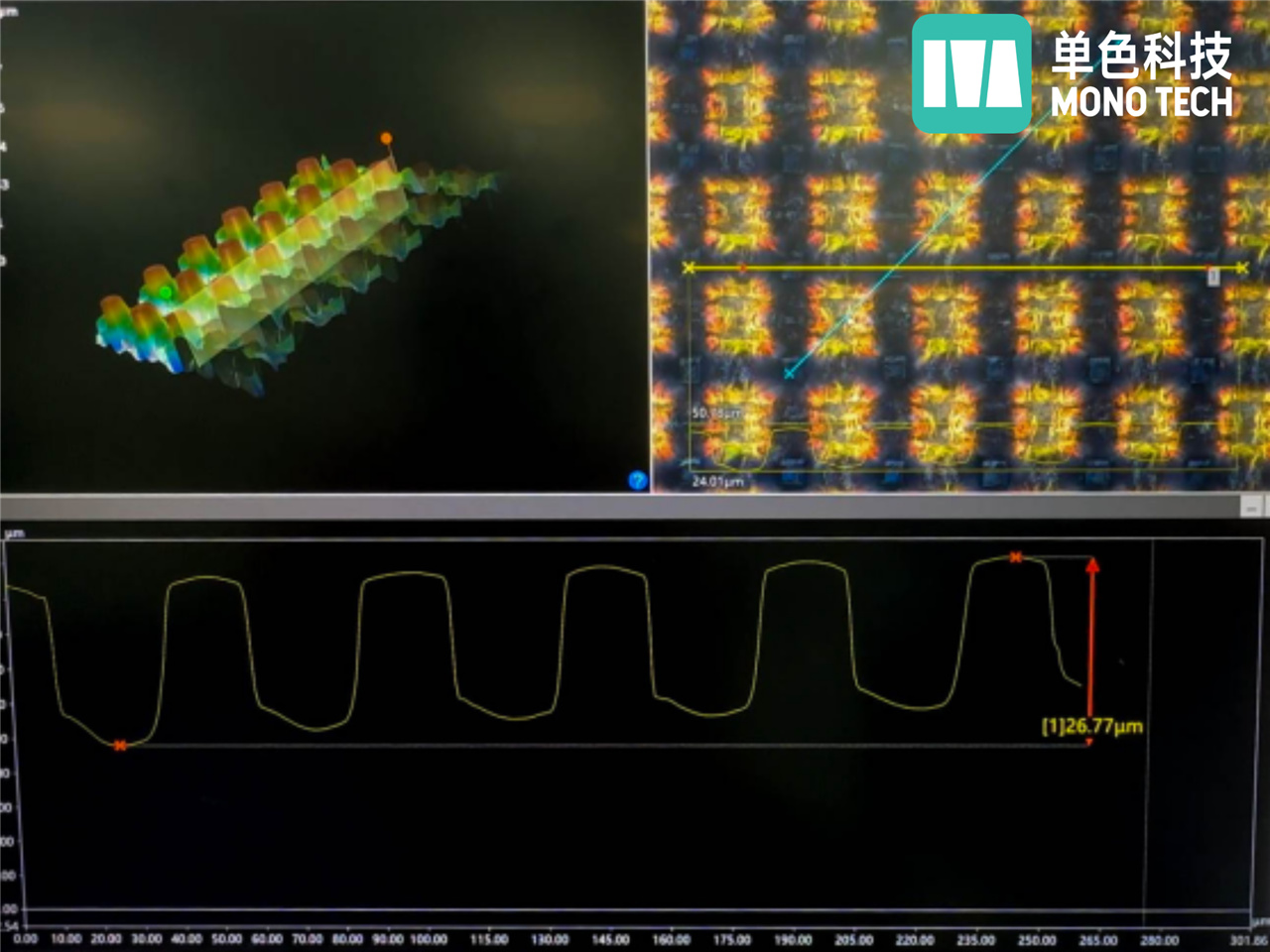

PI Bump Structure Machining: Bump height 26μm±2μm, smooth surface—adapts to micro-texture manufacturing needs in flexible electronics and micro-sensors.
PDMS Microneedle Array Etching
PI Bump Structure Machining
0102
Femtosecond Laser: The Ideal Choice for Polymer Machining
Core Pain Points of Traditional Machining
Mechanical Machining: Prone to burrs and tearing; unable to achieve micro-nano scale precision structures;
Nanosecond/Picosecond Laser: Long pulse duration leads to heat diffusion, causing polymer melting, degradation, and discoloration;
Chemical Etching: High environmental risks; only suitable for simple contours; insufficient precision.
Core Advantages of Femtosecond Laser
✅ Near-Zero Thermal Impact (Cold Processing): Pulse width as short as 10⁻¹⁵ seconds; material vaporizes before heat conduction, no melting or warping—preserves the original performance of substrates;
✅ Ultra-High Precision & Controllability: Micron/nano-level machining accuracy, small dimensional errors, and strong consistency in mass production;
✅ Excellent Surface Quality: Neat edges, no burrs or carbonization, almost no post-processing required;
✅ Wide Compatibility: Works with all heat-sensitive polymers, regardless of material form or hardness; capable of machining complex 3D microstructures.
